Shop Fox
1 Hp Dust Collector

Shop Fox 1 HP Dust Collector - W1727

Designed for portability, the model W1727 1 HP Dust Collector can be moved from one machine to another when needed, instead of having to build an entire fixed dust collection system and running ducts to each machine. CSA certified meeting CSA C22.2 #243–M91 and UL 1017–4th standards!

Specifications:

  • Motor: 1 HP, 120V/240V, single-phase, prewired 110V
  • Motor amp draw: 9A/4.5A
  • Air suction capacity: 800 CFM
  • Static pressure: 5.67"
  • Number of 4" intake holes: 1
  • Impeller: 9" balanced steel, radial fin
  • Bag capacity: 2.1 cubic feet
  • Portable base size: 15-3/4" x 39-3/4"
  • Bag size (diameter x depth): 14-3/4" x 24-3/8" (2)
  • Powder-coated finish
  • Height with bags inflated: 54-1/2"
  • Approximate shipping weight: 59 lbs.
Item# Description Price Quantity
330
Shop Fox 1 HP Dust Collector - W1727
$239.99 Phone Order Only
(888) 512-9069
Requires extra shipping fees.

Product Divider Image

Shop Fox
1-1/2 Hp Dust Collector

Shop Fox1-1/2 Hp Dust Collector

A powerful dust collector from Shop Fox®! This unit features an extra heavy-duty 12" steel impeller and a 1-1/2 HP motor that runs on 110V. For wood dust only. Models manufactured after June 2015 come with a 2.5 micron felt upper filtration and a plastic (PE) lower collection bag. The upper 2.5 micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them.

Specifications:

  • Motor: 1-1/2 HP, 110V, single-phase, 3450 RPM, 16A
  • Portable base size: 21-1/4" x 33-1/2"
  • Bag capacity: 5.4 cubic feet
  • Height (with bags inflated): 78"
  • Powder-coated finish
  • Air suction capacity: approx. 1280 CFM
  • Impeller: 12" balanced steel, radial fin
  • 6" inlet has a removable "Y" fitting with two 4" openings
  • Static pressure: 10.1"
  • Standard bag filtration: 2.5 Micron
  • Height with bags inflated: 78"
  • Approximate shipping weight: 108 lbs.
Item# Description Price Quantity
331
Shop Fox1-1/2 Hp Dust Collector - (W1685)
$299.99 Phone Order Only
(888) 512-9069
Requires extra shipping fees.
336
2.5 Micron Replacement Dust Collector Bag universal oversize bag for upper and lower bag replacement. - 18" Dia. x 40" LD3116
$59.99
335
Replacement Bag - Lower 19" Dia. x 33" L (D1796)
$24.99
334
Replacement Bag - Upper 19" Dia. x 33" L (D1795)
$29.99

Product Divider Image

Shop Fox
2 HP Dust Collector

Shop Fox 2 Hp Dust Collector - (W1666)

This SHOP FOX® Dust Collector features a 2 HP motor and an extra Heavy-Duty 12" steel impeller that moves 1,550 cubic feet of air every minute. When it comes to performance and value, this one is hard to beat! For wood dust only. Models manufactured after June 2015 come with a 2.5 micron felt upper filtration and a plastic (PE) lower collection bag. The upper 2.5 micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them.

Specifications:

  • Motor: 2 HP, 220V, single-phase, 3450 RPM, 12A
  • Static pressure: 12.3"
  • Impeller: 12" balanced steel, radial fin
  • Portable base size: 21-1/4" x 33-1/2"
  • Bag capacity: 5.4 cubic feet
  • Air suction capacity: approx. 1550 CFM
  • 6" Inlet has a removable "Y" fitting with two 4" openings
  • Standard bag filtration: 2.5 Micron
  • Powder-coated finish
  • Height with bags inflated: 78"
  • Approximate shipping weight: 108 lbs.
Item# Description Price Quantity
332
Shop Fox 2 Hp Dust Collector - (W1666)
$349.99 Phone Order Only
(888) 512-9069
Requires extra shipping fees.
336
2.5 Micron Replacement Dust Collector Bag universal oversize bag for upper and lower bag replacement. - 18" Dia. x 40" LD3116
$59.99

Product Divider Image

Shop Fox
Wall Dust Collector - W1826

Wall Dust Collector - W1826

This wall-mounted Dust Collector is designed to capture dust right at the source, eliminating the reduced efficiency of a duct system. With 537 CFM capacity, it will handle just about any hungry woodworking machine, and without a complicated duct system, static pressure loss is minimal. A simple wall-mount bracket and locking screw system ensures you'll be safely up and running in no time! The bag filter features a window to gauge dust levels in the bag and a bottom zipper for easy cleaning.

Specifications Motor:

  • 1 HP, 120V/240V, single-phase, prewired 110V
  • Motor amp draw: 7A/3.5A
  • Air suction capacity: 537 CFM
  • Static pressure: 7.2"
  • Intake Hole Size: 4"
  • Impeller: 10" balanced cast-aluminum
  • Bag capacity: 2 cubic feet
  • Bag size (diameter x depth): 13-1/2" x 24"
  • Standard bag filtration: 2.5 micron
  • Powder-coated finish
  • Height with bag inflated: 44"
  • CSA certified meeting CSA C22.2 #243-M91 and UL 1017 standards
  • Approximate shipping weight: 55 lbs.
Item# Description Price Quantity
716
Wall Dust Collector - W1826
$209.99

Product Divider Image

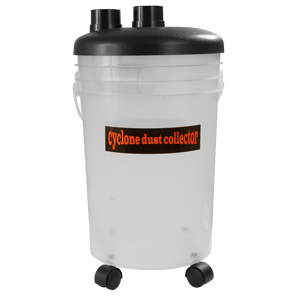

Mini Cyclone Dust Kit

Mini Cyclone Dust Kit

Is your shop vac just not hacking it? Tired of all the work it takes to empty your shop vac and clean the filter?

The Mini Cyclone Dust Kit solves these problems. The Mini Cyclone traps most of the sanding dust, with only a fraction making it to the vacuum. That means you easily dump the Mini Cyclone not the shop vac. Extends the life of shop vac and your filters. Since the Mini Cyclone is on rollers it is easy to roll around the shop from machine to machine. In and out dust ports for 2-1/2" I.D. dust collection hose.

Item# Description Price Quantity
539
Mini Cyclone Dust Kit
$44.99

Product Divider Image

DGC Products i-Socket Autoswitch



The i-Socket Autoswitch will automatically turn on the shop vacuum or dust collctor when the power tool is switched ON and continue running after the tool is powered off to clean out the inlet pipe.

  • Connect a vacuum hose to the dust collection port of the tool.
  • Plug the i-Socket Autoswitch into any standard 15A/120V house outlet.
  • Tool plugs into the "TOOL" outlet. Vacuum plugs into the "VAC" outlet.
  • The vacuum switch must be in the ON position for auto-startup.
  • Intelligent plug-in switch automatically controls a vacuum or dust collector through the power tool's on/off switch!
  • On-board micro-controller controls the in-rush of current and delays vacuum shut off by 7 seconds to clean out hose.

Vacuum Port:

  • Any standard shop type vacuum will run on the i-Socket.
  • Vacuum motor HP should not exceed 1875 Watts.
  • Dust collector motor should be rated at 120v/15amps and HP should not exceed 1875 Watts.
  • Power feeders can also be controlled from the vacuum port.

The i-Socket Autoswitch is not intended for commercial use.  It was designed to be used in the home workshop on a standard 120v/15amp house outlet.  If used on a 20amp breaker the i-Socket Autoswitch will function properly but all tool and vacuum standards must still comply with the 120v/15amp ratings.

Tool Port:

  • Max. motor rating should not exceed 120v, 15amps, 60 Hz, 1875 Watts.
  • Table saws from portable to contractor type.
  • Miter Saws both 10” and 12”.
  • Any hand sander palm, DA, belt sander.
  • Routers.
  • Portable joiners or planers.
Item# Description Price Quantity
1263
DGC Products i-Socket Autoswitch
$39.99

Product Divider Image

FastCap Logo
Remote Control Vacuum Switch

Remote Control Vacuum Switch

The Remote Control Vacuum (RCV) makes you more efficient by removing the need to walk back and forth to turn your vacuum on. Simply attach the remote to the end of your vacuum hose via the hook & loop strap and get ready to save time and money. Not to exceed 10 amps.



Channel Information:

The channels are needed if you have multiple Shop Vacs and want to control each separately. You can specify a different channel for each Shop Vac so they don't switch each other on and off.

Remote Control Vacuum Switch FastCap Remote Control Vacuum Switch in action FastCap Remote Control Vacuum Switch plugged in image
Item# Description Price Quantity
458
FastCap Remote Control Vacuum Switch Channel 1
$29.99
459
FastCap Remote Control Vacuum Switch Channel 2
$29.99

Product Divider Image

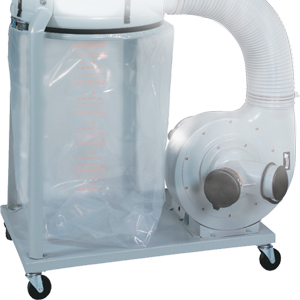

Dust Collector Bags

Dust Collector Bags

A quality and economical replacement dust bag for your old worn out bag.

The bags are available in two different sizes:

  • 14" diameter by 29-1/2" long.
  • 20" diameter by 40-1/2" long

The bags are made from a durable plastic and comes in five packs. Designed for use with upright dust collectors that use both top and bottom bags. The bags work with the most common upright dust collectors. These are to be used on the bottom of the dust collector only.

Item# Description Price Quantity
513
14" dia. x 29-1/2" long 5 pack
$14.99
514
20" dia. x 40-1/2" long 5 pack
$23.99

Product Divider Image

Dust Collector Remote Control Switch

Dust Collector Remote Control Switch

Turn on your dust collector from anywhere in your shop with the Improved "Long Ranger III" Remote Dust Collector Switch.
Save yourself the inconvenience of walking over to turn on your dust collector when you find you're in the middle of a critical project. Simply press the transmitter on/off button to easily switch your dust collector on or off.

Advantages Of This Improved System Include:

  • Simple, Reliable and
    foolproof operation

  • 5 ft. cord on the receiver module.

  • Heavy duty commercial quality construction.

  • Convenient belt clip on transmitter

  • Available in 110V and 220V versions

  • F.C.C. approved

  • Multiple frequency codes

  • Grounded w/reset button

  • Uses R.F. signal, not affected by: Outside interference by large TV's, Transformers, electrical noise, or 3 Phase Power sources

  • Transmitter need not be aimed directly at Receiver– can go through walls!

No. Description
Price
Quantity
466
110 Volt Long Ranger Remote Control Switch
$64.99
467
220 Volt Long Ranger Remote Control Switch
$74.99
Product Divider Image

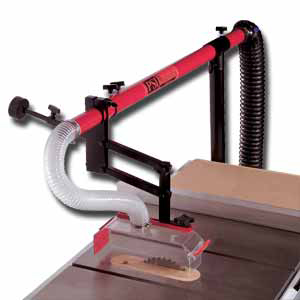

Table Saw Dust Collector and Safety Guard

Table Saw Dust Collector and Safety Guard

This Table Saw Safety Dust Guard is the ideal solution for table saw safety and dust control. When connected to a dust collection system, the Dust Collection Guard captures the dust thrown up by your table saw blade. The Guard can be used on any table saw with an extension table. It is very easy to install and easily swings out of the way. A unique counter-balance allows for fast & easy positioning.

Features and Specifications:

  • Protects you from hazardous table saw debris
  • Hood is constructed from one piece, clear shatterproof plastic
  • Accepts saw blades up to 16 "
  • Can use with dado blades.
  • Allows tilts for 45degree cuts
  • Adjusts easily to suit thickness of material being cut
  • Accommodates splitter and anti-kickback pawls
  • Connects to a standard 4" duct system
  • Boom extends to a full 83"
  • Can be mounted to ceiling for maximum clearance
  • Easy setup and adjustment Easily swings out of the way
  • Sturdy steel mast and boom construction
  • Connects to 4" dust hose
Item# Description Price Quantity
328
Table Saw Dust Collector and Safety Guard
$199.99

Note: Oversized Item, Require Additional Shipping Fees

Product Divider Image

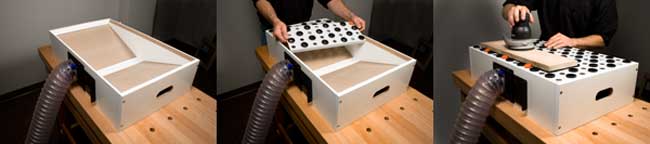

Down Draft Box Table

Down Draft Box Table

This Pre-Made Down Draft Box comes with everything you need to draw harmful dust particles away from the user without obstructing the user's movement or productivity.

  • 7" deep x 17-1/4" wide x 28" long down draft box (some assembly required) with baffles to direct saw dust towards dust port.
  • 4" dust collection port / blast gate connects to your dust collection system for efficient dust/chip disposal (hose not included)
  • Includes 64 non-slip rubber grommets to help stabilize your work piece while sanding or routing.
  • Orange stops are also included to prevent stock movement while sanding and are able to be placed in any of the open holes on the plate(s).

Note: Dust Hose Not Included

Down Draft Box Table Down Draft Box Table Down Draft Box Table Down Draft Box Table
Item# Description Price Quantity
227
Down Draft Box Table
$89.99

Product Divider Image

Downdraft Panels

Downdraft Panels 2 Pack

Build your own custom downdraft table and finish it off with these steel down draft panels. Each plate measures 6-3/4" x 16-1/2" and has soft, non-slip rubber grommets to prevent marking the stock. Orange stops are also included to prevent stock movement while sanding and are able to be placed in any of the open holes on the plate(s).

The set includes 2 down draft panels.

Item# Description Price Quantity
3592
Downdraft Panels 2 Pack
$24.99

Product Divider Image

6" X 4" Y Adaptor

6" X 4" Y Adaptor

This 6" X 4" Y Adaptor has a 6" I.D. on the large inlet side and 3-15/16" O.D.'s on the two Y inlets. This Adaptor will adapt a single 6" O.D. pipe or connection to two 4" connections for 4" dust collections hose.

Item# Description Price Quantity
445
6" X 4" Y Adaptor
$6.99

Product Divider Image
