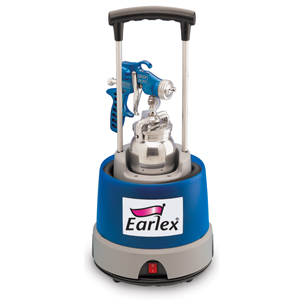

HV5500 Spray Station

The Spray Station 5500 is a professional unit designed for light contractor, occasional maintenance, woodworker and serious DIY enthusiast. The Spray Station 5500 is ideal for use in the workshop, garden or home. Water-based and oil-based coatings can be applied with the Earlex HV5500 Spray Station This model is supplied with onboard storage for spray gun, long carry handle for easy portability, spray gun cleaning kit and 1 quart pro-gun with PTFE-coated paint container which is easy to clean, long lasting and non-corrosive.

Technical Specifications:

  • 650 Watt
  • Detachable carry handle
  • 42 CFM/ 22 PSI
  • 160 Din/Sec Turbine motor
  • Ideal for spraying walls, ceilings, doors, fences, shutters, cabinetry, spindles, iron work, sheds, decking, furniture, cars and more
  • 1Qt. easy-to-clean Non-stick PTFE coated container with quick-release lever
  • 13-foot air hose
  • 5.5-foot power cord
  • Sprays a wide variety of materials
  • Sprays from 1" - 12" wide fan pattern
  • Fitted with variable output control
  • Press and twist air cap for faster spray pattern adjustment
  • Includes 2.0mm (0.08") stainless steel tip and needle
  • Optional needle sets
  • Fast "Push N Click" 3 spray pattern changing system
  • On board gun, hose and cord storage
  • long carry handle

Hints & Tips:

  • Preparation is essential - remember to mask around the areas you are not spraying.
  • Take the time to ensure paint viscosity is correct.
  • Thin paint as necessary using water or relevant thinners.
  • If you've never sprayed before, practice for a few minutes on a piece of cardboard to develop your technique.
  • Allow time for drying between coats.
  • Fine mists will generally dry faster than heavier coats. This will allow you to build up coats faster and there is less likelihood of runs.
  • Avoid spraying when windy.
Earlex HV5500 Spray Station



Kit includes:

  • 1 ea. Turbine unit with onboard pod, hose & power cord storage and detachable long handle for easy mobility.
  • 1 ea. One quart Non-stick PTFE coated container with metal spray gun
  • 1 ea. 13-foot air hose
  • 1 ea. Stainless steel needle
  • 1 ea. Viscosity cup
Item# Description Price Quantity
10452
Earlex® HV5500 Spray Station
$319.00
10454
1.0 mm Stainless Steel Needle for HVLP 5500 HV5ACC10R
Needle Tip Size 1.0 mm (0.04 in.)
$49.99
10455
1.5 mm Stainless Steel Needle for HVLP 5500 HV5ACC15R
Needle Tip Size 1.5 mm (0.06 in.)
$49.99
10456
2.5 mm Stainless Steel Needle for HVLP 5500 HV5ACC25R
Needle Tip Size 2.5 mm (0.10 in.)
$49.99

Product Divider Image

Earlex Logo
Spray Port 6003

Gun Options

Pressure Fed

Needle Fluid Tip

1.3 mm

Cup option

1L

Turbine

3-Stage

Power

1200W

Air Filters

Dual/Removable

Pressure rating

5.5 (0.38 bar)

Weight

2 lb (11.5kg)

Hose Length

25ft. (7.6m)Yes

Sturdy handle

Yes

Robust assembly

Yes

Compact size

Yes

The Earlex Spray Port 6003 is a step up in power and performance from the 6002 with a 1200W 3-stage turbine. Ideal for increased atomization of thin or thicker coats and increased production speed.

HyperFlex™ Hose
The new HyperFlex™ hose is the most lightweight and flexible hose on the market. The hose has always been the last thing to be developed by manufacturers, but it was something Earlex felt was critical to user interface and performance. Specifically designed for the professional, it has quick-connect gun functionality and removes the need to have a whip hose avoiding unnecessary arm fatigue. It’s so flexible that it allows the user to manipulate the gun without the hassle and weight of moving a thick heavy hose. It’s crush-resistant, sufficient to withstand someone inadvertently standing on the hose.

Specifications:

  • Die-Cast Alloy, Non Bleed Gun with 2 stage trigger action with Top & Bottom Feed
  • Non-bleed gun and ergonomic stay cool handle attached to a lightweight HyperFlex hose
  • Fluid Adjuster and 360-degree Spray Pattern Rotation
  • Wide spray air nozzle - the only HVLP with wide spray!
  • Quick Connect coupler to hose and precision pattern control adjuster - Retractable swivel arm with locating aperture for convenient gun storage
Item# Description Price Quantity
10453
Earlex® Spray Port 6003
$499.99
10465
Earlex® Needle Kit .08mm (Needle, Air Cap & Fluid Tip)
$39.99

Product Divider Image

Earlex Logo
HVLP Spray Gun Cleaning Kit

The spray gun cleaning kit helps to ensure preventative maintenance for longer life and helps to assure perfect performance every time.

Cleaning kit Includes:

  • Long brush for cleaning removable parts
  • Large general purpose cleaning brush.
  • Grease for needle packing and moving parts.
  • Nozzle cleaner for 1.0mm HVLP.
  • Combined small wash/cylindrical brush for small parts and apertures.
  • Cylinder cleaning brush.
  • Long brush for cleaning spray gun cup.
Item# Description Price Quantity
10457
HVLP Spray Gun Cleaning Kit for All HVLP's SGCK1
$14.99

Product Divider Image

Summit Logo
HVLP Finishing Sprayer

Summit® HVLP Finishing Sprayer

Stain, paint, shellac and more with professional result! The Summit™ HVLP Finishing Sprayer has a lightweight 400 watt motor with an easy to clean sprayer. The unit allows you to finish your work in a fraction of the time than using a typical paint brush or spray can. It's perfect for smaller finishing projects like boxes, bowls, cabinet doors, cabinet drawers and more. HVLP (High Volume Low Pressure) air flow allows you to apply your finish quicker, more evenly and without the annoying drips and the mess of standard brush, roller or sprayer.

Included in this system:

  • 1 each spray gun
  • 1 each paint or stain container
    (holds 1 pint of paint or stain)
  • 1 each 1mm fine spray needle
  • 1 each 400 watt HVLP turbine motor
  • 1 each 9 foot long hose.
Item# Description Price Quantity
10462
Summit® HVLP Finishing Sprayer
$119.99
10463
1.8mm Spray Needle Tip
$4.99
10464
Air Filter for Summit® HVLP Finishing Sprayer
$2.99

Product Divider Image

Franmar Logo
Kleen Again™
Brush & Spray Gun Cleaner

Kleen Again™

Kleen-Again easily and safely removes wet or hardened oil and latex paints, stains, urethanes, varnishes and enamels from brushes and spray guns. Made from soybeans, Kleen-Again is biodegradable, environmentally friendly and cleans without the odors associated with traditional brush and gun cleaners.

Item# Description Price Quantity
21051
Kleen Again™ Brush & Spray Gun Cleaner Quart KAQTWD
$19.95
