Jet
JWL-1221VS 12'' x 21'' Variable Speed Wood Lathe

Jet Wood Lathe 1221VS / 719200
Click for Larger View

Note:

Standard Shipping Rates Applies
Plus $110

Shipping Weight:137lbs

The Jet 1221VS is Different from anything Jet has made before. In truth, It's different than anything that anybody has ever made before. The design is better, The features are better, The entire turning experience is better. And it's all focused on one concept... Control.

Features:

  • Unrivaled speed control
  • 60-3600 RPM variable speed
  • Optimally designed speed ranges
  • Forward to reverse is a smooth transition
  • Innovative ratchet style belt tension system (patent pending)
  • Integrated, spring loaded spindle lock
  • Conveniently located controls and DRO
  • Acme thread in tailstock
  • 24 integrated indexing positions



Specifications:

Swing Over Bed
12-1/2"
Swing Over Tool Rest Base
9-9/20"
Distant Between Center
20-1/2"
Spindle Bore
3/8"
Spindle Taper
MT2
Spindle Thread
1" / 8TPI
Number of Indexing Positions
24
Motor Power
1HP
Motor Voltage
115V
Prewired Voltage
115V
Recommended Circuit Size
10Amps
Item# Description Price Quantity
8468 JWL-1221VS 12'' x 21'' Variable Speed Wood Lathe
719200
$816.99

Jet
Wood Lathe 1221VS & Stand Combo

Jet Lathe 1221VS & Stand Combo
Click for Larger View

Note:
Item# 8497
Standard Shipping Rates Applies
Plus $120
Shipping Weight: 185lbs

Note:
Item# 8484
Standard Shipping Rates Applies
Plus $75
Shipping Weight: 48lbs

This sturdy stand, with a convenient storage basket , takes the JET 1221VS lathe from a benchtop lathe to a stand-alone lathe

The Jet 1221VS is Different from anything Jet has made before. In truth, It's different than anything that anybody has ever made before. The design is better, The features are better, The entire turning experience is better. And it's all focused on one concept... Control.

Features:

  • Unrivaled speed control
  • 60-3600 RPM variable speed
  • Optimally designed speed ranges
  • Forward to reverse is a smooth transition
  • Innovative ratchet style belt tension system (patent pending)
  • Integrated, spring loaded spindle lock
  • Conveniently located controls and DRO
  • Acme thread in tailstock
  • 24 integrated indexing positions



Specifications:

Swing Over Bed
12-1/2"
Swing Over Tool Rest Base
9-9/20"
Distant Between Center
20-1/2"
Spindle Bore
3/8"
Spindle Taper
MT2
Spindle Thread
1" / 8TPI
Number of Indexing Positions
24
Motor Power
1HP
Motor Voltage
115V
Prewired Voltage
115V
Recommended Circuit Size
10Amps
Item# Description Price Quantity
8497 Jet Lathe 1221VS & Stand Combo $1066.98
8484 Jet 1221VS Stand Only / 719202A $249.99

Jet

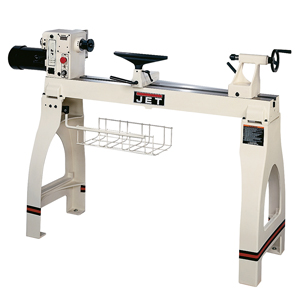

JWL-1840EVS 18" x 40" Wood Lathe

Jet JWL-1840EVS 18" x 40" Wood Lathe / 719600
Jet JWL-1840EVS 18" x 40" Wood Lathe / 719600 Jet JWL-1840EVS 18" x 40" Wood Lathe / 719600
Click for Larger View


Note:
Standard Shipping Rates Applies
Plus $200
Shipping Weight: 484lbs

Introducing the 1840EVS woodworking lathe from JET. Designed to be as versatile as you are in the shop this lathe features a headstock that slides the full length of the bed and pivots 360º with seven positive locking positions. The included four-inch cast iron risers allow you to easily choose the working height that maximizes your comfort.

Features:

  • Sliding headstock pivots 360 degrees with seven positive locking positions
  • Extended spindle nose houses dual headstock spindle bearings
  • Four inch cast iron risers allow user to adjust height of lathe for maximum comfort
  • Improved tailstock quill locking mechanism incorporates an anti-rotation key
  • Tailstock features Acme threads for smooth and durable movement
  • Banjo uses non-marring, positive locking wedge system to securely hold tool post
  • Tool post locking mechanism designed for year of consistent strength
  • Spindle lock latch frees up both hands
  • Electronic infinitely variable speed from 40 – 3200 RPM
  • 36 integrated indexing positions
  • Newly designed headstock locking handle accessible from front of lathe
  • Remote emergency stop button can be situated along the lathe bed
  • Convenient leg-mounted tool holder
  • Conveniently located digital readout
  • Rubber tool mat on top of headstock
  • E Drive Inverter features a built in EMI filter
  • Inverter is enclosed for added protection



Specifications:

Swing Over Bed: 18-1/2 "
Swing Over Tool Rest Base: 14-1/4 "
Distance Between Centers: 40
Headstock Movement: Slide & Rotate
Spindle Bore: 5/8 "
Tailstock Bore: 3/8 "
Spindle Taper: MT2
Quill Taper: MT2
Quill Travel: 4-1/4 "
Spindle Thread: 1-1/4" / 8 TPI
Spindle Speeds: High 120-3200 / Low 40-1200
Speed Range: 40-3200
Number of Indexing Positions: 36
Centerline of Spindle to Floor: 39-1/4; 43-1/4 w/risers
Bed Construction: Cast Iron
Motor Power: 2 HP
Motor Phase: 3 PH.
Motor Voltage: 230 V.
Prewired Voltage: 230 V.
Wiring Remarks: 230v, 1ph input only
Motor: 6.1 Amps
Recommended Circuit Size: 20 Amps
Item# Description Price Quantity
8467 Jet JWL-1840EVS 18" x 40" Wood Lathe / 719600 $3060.99

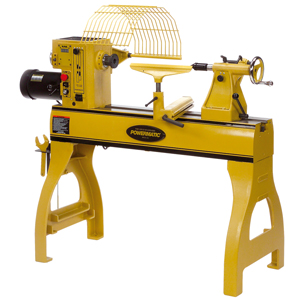

Powermatic
3520B Lathe, 2HP, 1 or 3PH, 220V

Powermatic Lathe 3520B
Powermatic Lathe 3520B Powermatic Lathe 3520B Powermatic Lathe 3520B
Powermatic Lathe 3520B Powermatic Lathe 3520B Powermatic Lathe 3520B
Click for Larger View

Note:

Standard Shipping Rates Applies
Plus $200
Shipping Weight: 484lbs

The Powermatic® 3520B is the third evolution of the time honored lathe with many new and improved features. The 3520B retained all the features of the prior models such as the sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Additional features include a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.

Features:

  • Attached tool caddy allows convenient access to centers, wrenches, etc.
  • Tailstock has internal storage for additional accessories
  • Chrome trimmed handwheels are ergonomic for a comfortable feel
  • Standard Equipment:
  • 2HP TEFC Motor
  • Safety shield
  • 3" face plate and face plate wrench
  • 14" tool rest
  • Multiple ball-bearing live center
  • Brass tipped knockout rod
  • Drive center
  • Spindle lock
  • A variable frequency drive allows this machine to run on single or three phase power



Specifications:

Swing Over Bed: 20"
Swing Over Tool Rest Base: 17"
Distance Between Centers: 34-1/2"
Headstock Movement: Full Length of Bed
Spindle Bore: 5/8
Tailstock Bore: 3/8
Spindle Taper: MT-2
Quill Taper: MT-2
Ram Travel Quill Travel: 4-1/2
Spindle Threads: 1-1/4" x 8 TPI
Outboard External Threads: 1-3/16" -18 UNC
Spindle Speeds: High 125-3200/Low 50-1200
Speed Range: 50-3200
Number of Indexing Positions: 48
Centerline of Spindle to Floor: 44"
Outboard Turning: 88
Bed Construction: Cast Iron
Motor Power 2 HP
Motor Phase: 3 PH
Motor Voltage: 230 V. only
Prewired Voltage: 230 V. only
Wiring Remarks: VFD will accept
1 or 3 phase power
Motor Current: 6.2 Amps
Recommended Circuit Size: 20 Amps
Item# Description Price Quantity
8483 Powermatic 3520B Lathe, 2HP, 1 or 3PH, 220V
1352001
$4081.99

Shop Fox
8" x 13" Bench-Top Wood Lathe - W1704

Shop Fox® 8" x 13" Bench-Top Wood Lathe - W1704
Click for Larger View

Note:

Standard Shipping Rates Applies
Plus $10 Oversize Fee

Ideal for pen turning and small projects, this Benchtop Wood Lathe with cast-iron construction and variable-speed spindle offers the precision and control that pen turners and miniature hobyists demand. Includes safety paddle switch, MT#1 spur center, MT#1 live center, 4-1/4" and 7" tool rests, 53/4" faceplate, and 3/4" x 16 TPI RH spindle.



Specifications:

  • Moter: 1/3 HP, 110V, 4A
  • Variable-speed control
  • Spindle speed: 700-3200 RPM
  • 3/4" x 16 TPI RH spindle
  • 13" distance between centers
  • 8" swing over bed
  • Base mounting hole size: 8mm
  • MT#1 spur center
  • MT#1 live center
  • 4-1/4" and 7" wide tool rests
  • 5-3/4" faceplate
  • Includes two tool rests
  • Approximate shipping weight: 52 lbs.
Item# Description Price Quantity
717 Shop Fox® 8" x 13" Bench-Top Wood Lathe W1704 $199.99
