Benchtop Mortising Machine
JBM-5

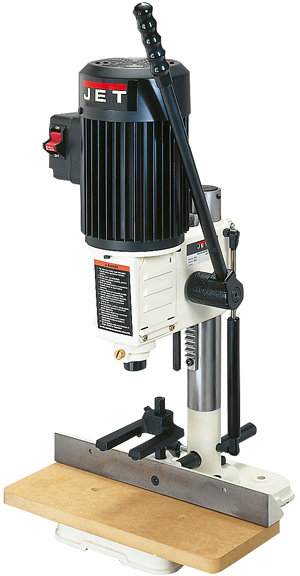

Jet Benchtop Mortising Machine JBM-5



Click Here for Larger View



Note:
Standard Shipping Rate Applies Plus $60
Shipping Weight: 52lbs

This conveniently sized, but powerful machine can be used on a bench or an independent stand. Heavy duty construction provide the durability, consistency and stability needed to produce quality results every time.

Features:

  • Heavy-duty cast iron and steel construction provides durability and stability during use
  • Dependable rack-and-pinion head adjustment gives you accurate position control
  • Long, multi-position mortising handle let you reposition the feed handle for easier operation and optimum handle position
  • Three-jaw drill chuck keeps a positive grip on mortising bits with up to 3/8" diameter shanks
  • Two hinged side doors allow easy access to the drill chuck
  • Quick adjust depth stop for uniform mortise depths
  • Column is reversible for mortising larger stock
  • Removable On/Off toggle switch prevents accidental or unauthorized use of the tool
  • Powerful 1/2HP motor provides consistently smooth performance

Specifications:

Style:
Benchtop
Chisel Center to Fence:
3-1/2"
Chisel Shank Capacity:
5/8", 3/4"
Chisel Stroke:
4-3/4"
Bushing Size:
5/8" & 3/4"
Chuck Size: 3/8"
Spindle Speed:
1725 RPM
Under Hold-Down:
4"
Fence Size:
1-9/16" L x 13-3/4" H
Base Size:
7-5/8" x 12-3/16"
Motor Power:
1/2 HP
Motor Phase: 1 PH
Motor Voltage: 115 V.
Prewired Voltage: 115 V.
Motor Amps: 6 Amps
Item# Description Price Quantity
8489
Jet Benchtop Mortising Machine JBM-5
$354.99
