Freud, an industry leader for over 50 years, the Freud name equals quality, precision and craftsmanship. Freud router bits feature Freud made TiC™ Hi-Density Carbide for maximum cutting life. Freud bits are individually balanced, giving a cut above the rest. So when you are looking for a serious router bit, look for the Freud red.


|
Creates top quality strong, tight-fitting glass panel door joints with ease and accuracy
- Extra strong rail and stile joints with a unique lock in the stile and rail joint, plus significantly more gluing surface. No other set on the market provides this feature.
- Easy time saving set-up improves accuracy and increases profitability for the professional.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers.
|
| No. |
Description
|
Price |
Quantity |
|
3023
|
Glass Panel Cabinet Door Bit Set 99-286
|
$159.99
|
|
| 3035 |
Freud Panel Molding Freud # GM-005 |
$19.99 |
|
|
 |
 |

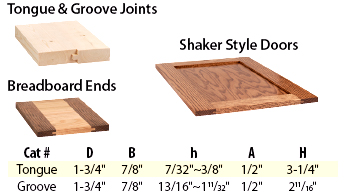

- Producing perfectly fitted tongue and groove joints for projects such as Shaker style cabinet doors
- Exclusive Freud design features a tongue cutter with opposing shear angles to ensure a flawless finish.
- Adjustable at .002 inch increments for stock thickness of 1/2" to 1-1/4" and groove widths of 7/32" to 3/8".
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on table-mounted portable routers.

|
| No. |
Description
|
Price |
Quantity |
|
2814
|
Freud Adjustable Tongue & Groove Bit Set
99-036
|
$79.99
|
|
|
 |

Bit |
|
Small
Dia.(n) |
Carbide
Height (h) |
Angle
(d) |
Minor Height
(m) |
Shank
Dia.(A) |
Overall
Lenght (H) |
| 45° Lock Miter |
2-11/64" |
- |
7/8" |
45° |
- |
1/2" |
2-3/8" |
| Drawer Lock |
2" |
1-3/4" |
33/64" |
30° |
5/32" |
1/2" |
2" |
| Rev. Glue Joint |
1-1/2" |
1-3/16" |
1-1/4" |
30° |
- |
1/2" |
2-3/4" |
22-1/2° Lock Joint Set
|
1-1-15/32" |
- |
7/8" |
22-1/2° |
- |
1/2" |
2-3/8" |
|

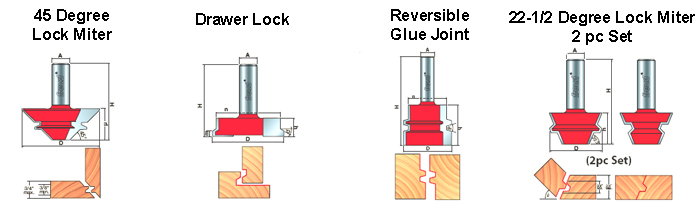

Create perfect locking corner joints with the lock miter bit and make a strong joint between the sides and front of drawers with the drawer lock bit. The lock miter set also includes the reversible glue joint bit that creates stronger joints by increasing the surface area for glue. Then add the 2 Piece 22-1/2° Lock Joint set for 8 sided boxes and columns and you have it all.
|
| No. |
Description
|
Price |
Quantity |
|
3034
|
Freud 5 Piece Locking Joint Bit Se twith 20 Min Introduction to Locking Joint DVD
|
$239.99
|
|
|
 |
 |
Bit |
|
Small
Dia.(n) |
Carbide
Height (h) |
Angle
(d) |
Minor Height
(m) |
Large
Radius (R) |
Shank
Dia.(A) |
Overall
Lenght (H) |
| 45° Lock Miter |
2-11/64" |
- |
7/8" |
45° |
- |
- |
1/2" |
2-3/8" |
| Drawer Lock |
2" |
1-3/4" |
33/64" |
30° |
5/32" |
- |
1/2" |
2" |
| Rev. Glue Joint |
1-1/2" |
1-3/16" |
1-1/4" |
30° |
- |
- |
1/2" |
2-3/4" |

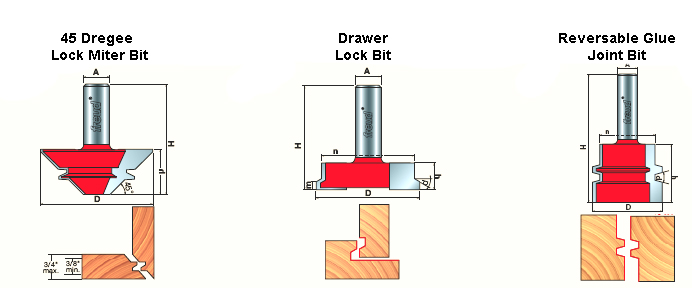

Create perfect locking corner joints with the lock miter bit and make a strong joint between the sides and front of drawers with the drawer lock bit. The lock miter set also includes the reversible glue joint bit that creates stronger joints by increasing the surface area for glue.
The combination of these three bits make for a near perfect router bit joinery set!
-
Reversible Glue Joint Bit. Plane boards
to a uniform thickness; align bit to the center of
the board, then reverse each board for a perfect
glue joint.
-
Drawer Lock Bit. Drawer
fronts are formed horizontally, flat on the router
table surface. Drawer sides are formed vertically
against the fence of the router table.
-
Lock Miter Bit. Run one
board vertically and piece to be joined horizontally.
This bit makes 90° corners or flat glue joints.
|
| No. |
Description
|
Price |
Quantity |
|
2878
|
Freud 3 Piece Locking Joint Set with 20 Min Introduction to Locking Joint DVD
|
$169.99
|
|
|
 |

|
This 2 Piece 22 1/2 degree lock miter set also includes the reversible glue joint bit that creates stronger joints by increasing the surface area for glue. This combination is great for gluing up panels to build 8 sided boxes, chest or columns with seamless lock miter corners.
|
| No. |
Description
|
Price |
Quantity |
|
3019
|
Freud 2 Piece 22-1/2° Locking Joint Set
|
$94.99
|
|
|
 |


|
Rounding over bits soften the edges of fine furniture, while beading bits produce a simple, decorative edge on furniture and moldings
-
Includes three rounding over bits and a 3/8" bearing which will convert all three bits into beading bits for the ultimate in value.
-
Rounding over bits soften the edges of fine furniture.
-
Beading bits produce a simple, decorative edge on furniture & moldings
-
Set comes in Freud™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
-
Cuts all composition materials, plywoods, hardwoods, and softwoods.
-
Use on hand-held and table-mounted portable routers.
|
| Item # |
| Set Contents |
Overall
Dia. |
Bearing
Dia. |
Carbide
Height |
Shank
Dia. |
Overall
Length |
|
| 89-150 |
| Rounding Over Bit (34-120) |
1" |
1/2" |
1/2" |
1/2" |
2-1/2" |
| Rounding Over Bit (34-124) |
1-1/4" |
1/2" |
5/8" |
1/2" |
2-5/8" |
| Rounding Over Bit (34-126) |
1-1/2" |
1/2" |
3/4" |
1/2" |
2-3/4" |
|
| 89-152 |
| Rounding Over Bit (34-118) |
3/4" |
1/2" |
1/2" |
1/2" |
2-1/2" |
| Rounding Over Bit (34-120) |
1" |
1/2" |
1/2" |
1/2" |
2-1/2" |
| Rounding Over Bit (34-124) |
1-1/4" |
1/2" |
5/8" |
1/2" |
2-5/8" |
| Rounding Over Bit (34-126) |
1-1/2" |
1/2" |
3/4" |
1/2" |
2-3/4" |
| Rounding Over Bit (34-128) |
2" |
1/2" |
1" |
1/2" |
2-7/8" |
|
|
| No. |
Description
|
Price |
Quantity |
|
2325
|
Freud 3 Piece Round Over Set 89-150
|
$74.99
|
|
2326 |
Freud 5 Piece Round Over Set 89-152 |
$109.99 |
|
|
 |
 |
Create dovetail and box joints by combining these bits with your table-mounted router equipped with an Incra Jig® / Jointech System
-
Follow the directions in the Incra Jig® / Jointech System manual and use the correct bit number for the joint you want to create.
-
Both sets produce identical profiles.
-
Includes attractive wooden storage box.
-
Cuts all composition materials, plywoods, hardwoods, and softwoods.
-
Use on table-mounted portable routers equipped with Incra Jig®.
-
Can also be used with other joint making jigs or fence systems and CNC automatice routers.
|
| Item # |
| Set Contents |
Overall
Dia. |
Bearing
Dia. |
Carbide
Height |
Shank
Dia. |
Overall
Length |
|
| 96-102 |
| Double Flute Straight Bit (12-100) |
1/4" |
3/4" |
- |
1/2" |
2-3/8" |
| Double Flute Straight Bit (12-108) |
3/8" |
1" |
- |
1/2" |
2-5/8" |
| Dovetail Bit (22-107) |
1/4" |
5/16" |
7-1/2° |
1/2" |
2-5/8" |
| Dovetail Bit (22-108) |
5/16" |
3/8" |
9° |
1/2" |
2-1/8" |
| Dovetail Bit (22-110) |
3/8" |
3/8" |
9° |
1/2" |
2-1/4" |
| Dovetail Bit (22-112) |
1/2" |
1/2" |
14° |
1/2" |
2-1/4" |
| Dovetail Bit (22-113) |
5/8" |
7/8" |
7° |
1/2" |
2-5/8" |
| Dovetail Bit (22-114) |
3/4" |
7/8" |
7° |
1/2" |
2-5/8" |
|
|
| No. |
Description
|
Price |
Quantity |
|
2336
|
Freud 8 Piece Incra Jig / Jointech Bit Set 96-102
|
$119.99
|
|
|
 |
 |
Creates perfectly fitted grooves and dadoes
-
Designed to cut today's undersized plywood; ideal for 1/4" to 3/4" plywood.
-
Set comes in Freud's™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
-
Cuts all composition materials, plywoods, hardwoods, and softwoods.
-
Use on hand-held and table-mounted portable routers.
|
Item # |
| Set Contents |
Overall
Dia. |
Carbide
Height |
Shank
Dia. |
Overall
Length |
|
| 96-102 |
| Down Shear Mortising Bit (16-094) |
7/32" |
1/2" |
1/2" |
2-1/4" |
| Down Shear Mortising Bit (16-107) |
11/32" |
1/2" |
1/2" |
2-1/4" |
| Down Shear Mortising Bit (16-109) |
15/32" |
1/2" |
1/2" |
2-1/4" |
| Mortising Bit (16-116) |
23/32" |
3/8" |
1/2" |
2-1/8" |
|
|
| No. |
Description
|
Price |
Quantity |
|
2329
|
Freud 4 Piece Undersized Plywood Bit Set
89-650
|
$74.99
|
|
|
 |
 |
Quickly create grooves, mortises, and dadoes with chip removal
-
Use the Up Spiral Bit Set for mortises, dado cuts, and deep blind holes where chips must be pulled out of the cut, and where speed of cut is the primary consideration.
-
Set comes in Freud's™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
-
Cuts all composition materials, plywoods, hardwoods, and softwoods.
-
Use on CNC and other automatic routers as well as hand-held and tablemounted portable routers.
|
| Item # |
| Set Contents |
Overall
Dia. |
Carbide
Height |
Shank
Dia. |
Overall
Length |
|
90-150 |
| Up Spiral Bit* (75-101) |
3/16" |
3/4" |
1/4" |
2" |
| Up Spiral Bit* (75-102) |
1/4" |
1" |
1/4" |
2-1/2" |
| Up Spiral Bit* (75-104) |
5/16" |
1" |
1/2" |
3" |
| Up Spiral Bit* (75-106) |
3/8" |
1-1/4" |
1/2" |
3" |
| Up Spiral Bit* (75-108) |
1/2" |
1-1/4" |
1/2" |
3" |
| *Solid Carbide |
|
90-160 |
| Down Spiral Bit* (76-101) |
3/16" |
3/4" |
1/4" |
2" |
| Down Spiral Bit* (76-102) |
1/4" |
1" |
1/4" |
2-1/2" |
| Down Spiral Bit* (76-104) |
5/16" |
1" |
1/2" |
2-1/2" |
| Down Spiral Bit* (76-106) |
3/8" |
1-1/4" |
1/2" |
3" |
| Down Spiral Bit* (76-108) |
1/2" |
1-1/4" |
1/2" |
3" |
| *Solid Carbide |
|
|
| No. |
Description
|
Price |
Quantity |
|
2330
|
Freud Down Spiral Router Bit Sets 90-160
|
$149.99
|
|
|
2331
|
Freud Up Spiral Router Bit Sets 90-150
|
$149.99
|
|
|
 |
 |
Offers a mix of woodworkers' favorite bits, including V grooving, flush trimming, chamfering and dovetailing
-
All bits have 1/2" shanks.
-
Set comes in Freud's™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
-
Cuts all composition materials, plywoods, hardwoods, and softwoods.
-
Use on hand-held and table-mounted portable routers.
|
| Item # |
| Set Contents |
Overall
Dia. |
Bearing
Dia. |
Carbide
Height |
Shank
Dia. |
Overall
Length |
|
| 91-100 |
| Double Flute Straight Bit (12-100) |
1/4" |
- |
3/4" |
1/2" |
2-3/8" |
| Double Flute Straight Bit (12-116) |
1/2" |
- |
1" |
1/2" |
2-5/8" |
| Double Flute Straight Bit (12-152) |
3/4" |
- |
1" |
1/2" |
2-1/2" |
| Mortising Bit (16-110) |
1/2" |
- |
1/2" |
1/2" |
2-3/8" |
| Round Nose Bit (18-114) |
1/4" |
- |
3/8" |
1/2" |
2-1/4" |
| V Grooving Bit (20-108) |
3/4" |
- |
1/2" |
1/2" |
2-1/4" |
| Dovetail Bit (22-112) |
1/2" |
- |
1/2" |
1/2" |
2-1/4" |
| Cove Bit (30-114) |
1-1/2" |
1/2" |
5/8" |
1/2" |
2-1/2" |
| Rabbeting Bit (32-102) |
1-1/4" |
1/2" |
1/2" |
1/2" |
2-1/4" |
| Rounding Over Bit (34-124) |
1-1/4" |
1/2" |
5/8" |
1/2" |
2-5/8" |
| Roman Ogee Bit (38-106) |
1-3/8" |
3/8" |
23/32" |
1/2" |
2-9/16" |
| Chamfer Bit (40-114) |
1-3/4" |
1/2" |
5/8" |
1/2" |
2-9/16" |
| Bearing Flush Trim Bit (42-110) |
1/2" |
1/2" |
1" |
1/2" |
3-1/4" |
|
|
| No. |
Description
|
Price |
Quantity |
|
2334
|
Freud 13 Piece Super Router Bit Set 91-100
|
$199.99
|
|
|
 |
 |
Ideal starter set for the beginning woodworker
-
Includes a variety of bits that allow you to experience several router functions.
-
Set comes in Freud's™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
-
Cuts all composition materials, plywoods, hardwoods, and softwoods.
-
Use on hand-held and table-mounted portable routers.
|
| Item # |
| Set Contents |
Overall
Dia. |
Bearing
Dia. |
Carbide
Height |
Shank
Dia. |
Overall
Length |
|
| 91-108 |
| Double Flute Straight Bit (12-116) |
1/2" |
- |
1" |
1/2" |
2-5/8" |
| Double Flute Straight Bit (12-108) |
3/8" |
- |
1" |
1/2" |
2-5/8" |
| Mortising Bit (16-110) |
1/2" |
- |
1/2" |
1/2" |
2-3/8" |
| Dovetail Bit (22-112) |
1/2" |
- |
1/2" |
1/2" |
2-1/4" |
| Rabbeting Bit (32-102) |
1-1/4" |
1/2" |
1/2" |
1/2" |
2-1/4" |
| Rounding Over Bit (34-120) |
1" |
1/2" |
1/2" |
1/2" |
2-1//2" |
| Roman Ogee Bit (38-106) |
1-3/8" |
3/8" |
1/2" |
1/2" |
2-3/8" |
| Bearing Flush Trim Bit (42-109) |
1/2" |
1/2" |
1/2" |
1/2" |
2-7/8" |
| V Grooving Bit (20-108) |
3/4" |
- |
1/2" |
1/2" |
2-1/4" |
|
|
*Solid Carbide
|
|
| No. |
Description
|
Price |
Quantity |
|
2333
|
Freud 9 Piece Basic Router Bit Set 91-108
|
$159.99
|
|
|

|
Offers a mix of woodworkers' favorite bits, including V grooving, flush trimming, chamfering and dovetailing
-
All bits have 1/2" shanks.
-
Set comes in Freud's™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
-
Cuts all composition materials, plywoods, hardwoods, and softwoods.
-
Use on hand-held and table-mounted portable routers.
|
| Item # |
| Set Contents |
Overall
Dia. |
Bearing
Dia. |
Carbide
Height |
Shank
Dia. |
Overall
Length |
|
| 91-100 |
| Double Flute Straight Bit (12-100) |
1/4" |
- |
3/4" |
1/2" |
2-3/8" |
| Double Flute Straight Bit (12-116) |
1/2" |
- |
1" |
1/2" |
2-5/8" |
| Double Flute Straight Bit (12-152) |
3/4" |
- |
1" |
1/2" |
2-1/2" |
| Mortising Bit (16-110) |
1/2" |
- |
1/2" |
1/2" |
2-3/8" |
| Round Nose Bit (18-114) |
1/4" |
- |
3/8" |
1/2" |
2-1/4" |
| V Grooving Bit (20-108) |
3/4" |
- |
1/2" |
1/2" |
2-1/4" |
| Dovetail Bit (22-112) |
1/2" |
- |
1/2" |
1/2" |
2-1/4" |
| Cove Bit (30-114) |
1-1/2" |
1/2" |
5/8" |
1/2 | | | | | |
