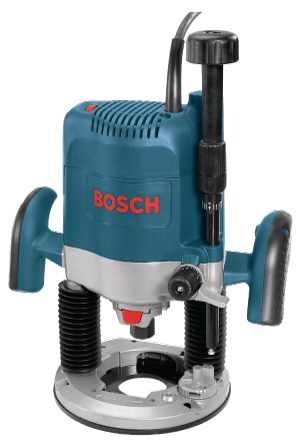

1619EVS 15 Amp 3-1/4-HP
Variable Speed Plunge Router

1619EVS 15 Amp 3-1/4-HP

The Bosch 1619EVS electronic plunge router is the most versatile and precise router above and below the table. It features a powerful 3-1/4-horsepower, 15 amp motor and 3-3/4-inch base opening, allowing it to handle any routing task, including raised panels. A new Bosch-exclusive system easily defeats both plunge lock and plunge springs for effortless under-table depth adjustments--without having to buy expensive accessories!

Features:

  • 3-3/4-inch base opening and 2-inch sub-base opening accepts large bits
  • Coarse and microfine adjustment knobs plus depth rod and turret
  • Soft-start reduces startup torque
  • Constant Response circuitry maintains constant speed under load and protects against overload
  • Exclusive precision centering design centers bit precisely
  • Tool-free templet guide adapter for fast and easy templet guide changes
  • Dual-bearing plunge post for smooth and accurate plunging action
  • Convenient front spindle lock for fast, easy bit changes
  • Double-insulated, UL-listed, complies with OSHA
  • Converts easily for use with router table

Includes:

  • Fine Adjustment Control Extension
  • Dust Extraction Hood
  • 1/4" Self-Releasing Collet Chuck
  • 24mm Collet Nut Wrench
  • Tool-Free Templet Guide Adapter
  • 1/2" Self-Releasing Collet Chuck
  • Vacuum Hose Adapter



Specifications:

Amperage 15
Base Diameter 7-1/2"
Base Opening 3-3/4"
Case Type No Case Included
Collet Capacity 1/4", 3/8", 1/2", 8 mm
Cord Length 10 ft
Max. Motor HP 3.25
Max. Tool HP 3.25
No Load RPM 8,000-21,000
Plunge Depth 2-9/16"
Rating 120V AC
Voltage 120V
Warranty Limited 1-Year Warranty
Weight 13.2 lb
Item# Description Price Quantity
10309
Bosch 1619EVS 15 Amp
3-1/4-HPVariable Speed Plunge Router
$309.99

Product Divider Image

Bosch Logo

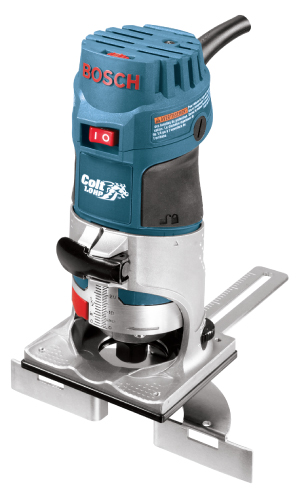

Colt™ Variable-Speed Palm Router Kit PR20EVSK

Colt™ Variable-Speed Palm Router Kit PR20EVSK
Specifications:

Amperage 5.6
Base Opening 1-9/16"
Case Type Hard Plastic
Collet Capacity 1/4"
Cord Length 10 ft
Height 7.5"
Length 3.5"
Max. Motor HP 1
Max. Tool HP 1
No Load RPM 16,000-35,000
Plunge Depth 1-3/16"
Subbase Length 3-1/2"
Subbase Width 3-3/4"
Voltage 120V
Warranty Limited 1-Year Warranty
Weight 3.3 lb
Width 3.75"

With its compact size and spirited performance, the 1.0 HP Colt Palm Router from Bosch is a very versatile tool. It's not just a laminate trimmer, but is ideal for trimming deck planks, hinge mortising, edge forming, slot cutting, dovetailing, window cutouts and decorative inlays. The PR20EVSK Variable-speed Colt Kit has a palm-grip design with Soft Grip to make it the most comfortable router in its class, yet it also has enough power to do the job and is more comfortable and easy to use than larger routers. The Soft start reduces start-up torque while the Bosch Constant Response Circuitry monitors and maintains speed under load for consistent performance and overload protection. Easily move the motor from base to base with the Quick-clamp System to work on other areas of your project. A convenient Front Spindle Lock on the motor was designed for easy, one-wrench bit changes and a shaft wrench is also included for those who prefer to use two wrenches to change bits. Bosch even covered the small details by angling the cord to help keep it out of the way. The contents of this kit make it ideal for all router users.

Features:

  • 1.0 HP (Max. tool output) — 5.6 Amp motor -16,000 35,000 RPM
  • Rugged aluminum fixed base — durable, solid and precise
  • Fast & precise depth adjustment system — allows both macro and micro adjustment
  • Unique finger support pockets — for additional stability, especially when trimming edges
  • Enhanced bit capacity — fixed base accepts bits up to 1-5/16 In. in diameter
  • Soft Start — reduces start-up torque
  • Constant Response™ circuitry — monitors and maintains speed under load for consistent performance and provides overload protection
  • Versatile bit-changing system - fast, easy bit changes using two wrenches or spindle lock and one wrench
  • Quick-clamp system — allows motor to be easily adjusted or moved from base to base
  • Palm-grip design with soft grip — the most comfortable router in its class
  • Angled cord exit — helps keep cord out of the way
  • Straight edge guide — guides router along edges of work piece or up to 3-5/8 In. from edge
  • Variable speed dial — for matching speed to work piece and task

Includes:

  • 1 ea. PR20EVS Motor
  • 1 ea. 1/4" Self-Releasing Collet Chuck
  • 1 ea. 17 mm Collet Wrench
  • 1 ea. 10 mm Shaft Wrench
  • 1 ea. Fixed Base
  • 1 ea. Straight Edge Guide
  • 1 ea. Carrying Case
  • 1 ea. Instruction manual.
Item# Description Price Quantity
21661
Bosch Colt™ Variable-speed Palm Router Kit PR20EVSK
$119.99

Product Divider Image

Bosch Logo
1 HP Colt™ VS Palm Router Combo Kit PR20EVSPK

Bosch 1 HP Colt™ VS Palm Router Combo Kit PR20EVSPK

With its compact size and spirited performance, the 1.0 HP Colt Palm Router from Bosch is a very versatile tool. It's not just a laminate trimmer, but is ideal for trimming deck planks, hinge mortising, edge forming, slot cutting, dovetailing, window cutouts and decorative inlays. The PR20EVSK Variable-speed Colt Kit has a palm-grip design with Soft Grip to make it the most comfortable router in its class, yet it also has enough power to do the job and is more comfortable and easy to use than larger routers. The Soft start reduces start-up torque while the Bosch Constant Response Circuitry monitors and maintains speed under load for consistent performance and overload protection. Easily move the motor from base to base with the Quick-clamp System to work on other areas of your project. A convenient Front Spindle Lock on the motor was designed for easy, one-wrench bit changes and a shaft wrench is also included for those who prefer to use two wrenches to change bits. Bosch even covered the small details by angling the cord to help keep it out of the way. The contents of this kit make it ideal for all router users.

Features:

  • 1.0 (Max) horsepower output for a wide array of routing applications
  • Variable-speed dial — for matching speed to work piece and task
  • Soft Start — reduces start-up torque Constant Response™ circuitry — monitors and maintains speed under load for consistent performance
  • Angled cord exit — helps keep cord out of the way
  • Rugged aluminum fixed base with micro and macro precise depth adjustment
  • Rugged plunge base with smooth plunge action, plunge lock release lever, and depth rod with microfine adjustment
  • Tool-free conversion — quick clamp system allows motor to be easily adjusted or moved from base to base
  • Fast & precise depth adjustment systems
  • Precision centering design — makes it easy to keep bit on intended cut line when using jigs, templet's, dovetail fixtures and similar guidance devices
  • Straight edge guide — PR002 guides router - in fixed base - along edges of work piece or up to 3-5/8 In. from edge
  • Comfortable contoured grip areas – the most comfortable router system in its class
  • Versatile bit-changing system – fast, easy bit changes using two wrenches or spindle lock and one wrench

Includes:

  • 1 ea. PR20EVS Motor
  • 1 ea. Fixed Base
  • 1 ea. Straight Edge Guide
  • 1 ea. Plunge Base
  • 1 ea. 1/4-inch self-releasing collet
  • 1 ea. Bit-Changes Wrenches
  • 1 ea. 1/4” Self-Releasing Collet
  • 1 ea. Instruction manual.
  • 1 ea. Carrying Case

Specifications:

Amperage 5.6
Base Diameter 5-3/4"
Case Type Hard Plastic
Collet Capacity 1/4"
Cord Length 10 ft
Fixed Base Depth 1-3/16"
Height 7.5"
Length 3.5"
Max. Motor HP 1
No Load RPM 16,000-35,000
Plunge Depth 2-1/4"
Sub base Length 3-1/2"
Sub base Opening 1-9/16"
Sub base Width 3-3/4"
Voltage 120V
Warranty Limited 1-Year Warranty
Weight 3.3 lb
Width 3.75"
Item# Description Price Quantity
21660
Bosch 1 HP Colt™ VS Palm Router Combo Kit PR20EVSPK
$185.99

Product Divider Image


Bosch Logo
2.25 HP VS Router 1617EVS

2.25 HP VS Router 1617EVS

Features:

  • 2.25HP/ 12 Amp motor 8,000-25, 000 RPM
  • Variable speed dial — for matching speed to work piece and task
  • Macro and microfine bit depth adjustment system with resettable depth indicator — for fast, precise depth adjustment
  • Large 3-3/4 In. base opening plus 2 In. sub woofer opening — accepts large bits
  • Exclusive precision centering design centers bit precisely — makes it easy to keep bit on intended outline when using jigs, templet's, dovetail fixtures and similar guidance devices
  • Right or left switch location — for user preference and consistency (motor does not rotate during depth adjustment)
  • Classic hardwood handles — for comfort and beauty
  • One-piece armature shaft — for accuracy and long bit shank capacity
  • Soft Start — reduces start-up torque
  • Constant Response™ circuitry — maintains constant speed under load, provides overload protection
  • Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
  • Double insulated
  • Power switch - now includes dust-sealed power switch
  • Now includes RA1161 fixed-base with system for adjusting bit height from above a router table

Includes:

  • 1/4" S. R. Collet Chuck
  • 1/2" S. R. Collet Chuck
  • 16mm Shaft Wrench
  • Collet Nut Wrench
  • Chip Shield
  • Fixed Base
  • T-Handle Hex Height Adjustment Wrench
  • Pack of 3 10-24 Screws for Table Mounting
Specifications:

Amperage 12
Base Diameter 6" fix
Base Opening 3-3/4"
Case Type No Case Included
Collet Capacity 1/4", 3/8", 1/2", 8mm
Cord Length 10 ft
Fixed Base Depth 1-5/8"
Max. Motor HP 2.25
No Load RPM 8,000 - 25,000
Sub Base Opening 2"
Rating 120 V AC
Voltage 120V
Warranty Limited 1-Year Warranty
Weight 8.3 lb
Item# Description Price Quantity
21750
Bosch 2.25 HP VS Router 1617EVS
$184.99

Product Divider Image

Bosch Logo
2.25 HP VS Router Combo Kit 1617EVSPK

2.25 HP VS Router Combo Kit 1617EVSPK

Features:

  • 2.25HP/ 12 Amp motor 8,000-25, 000 RPM
  • Variable speed dial — for matching speed to work piece and task
  • Soft-start — reduces start-up torque
  • Constant Response™ circuitry — maintains constant speed under load
  • Quick clamp system on both bases for fast tool-free conversion — move motor from base to base with ease
  • Precision centering design — makes it easy to keep bit on intended outline when using jigs, templet's, dovetail fixtures and similar guidance devices
  • microfine bit depth adjustment system on both bases — for fast, precise bit depth adjustment
  • Wide base openings and 2 In. subbase openings — accepts larger bits & provides better visibility
  • Right or left switch location — for user preference and consistency (motor does not rotate during depth adjustment)
  • Contoured soft grip handles — for enhanced control and comfort
  • Double insulated
  • Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
  • Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
  • Rugged carrying case has compartments for all included items
  • Power switch - now includes dust-sealed power switch

Includes:

  • 1/4" Self-Releasing Collet Chuck
  • Self-Releasing Collet Chuck
  • 16mm Shaft Wrench
  • 24mm Collet Nut Wrench
  • Carrying Case
  • Fixed Base
  • Plunge Base
  • Fixed Base Chip Shield
  • Plunge Base Chip Shield
  • Motor T-Handle Hex Height Adjustment Wrench
  • Pack of 3 10-24 Screws for Table Mounting
Specifications:

Amperage 12
Base Diameter 6" fix / 6-11/16" Plunge
Case Type Hard Plastic
Collet Capacity 1/4", 3/8", 1/2", 8mm
Cord Length 10 ft
Fixed Base Depth 1-5/8"
Max. Motor HP 2.25
No Load RPM 8,000 - 25,000
Plunge Depth 2-1/4"
Rating 120V AC
Voltage 120V
Warranty Limited 1-Year Warranty
Weight 19.5 lb
Item# Description Price Quantity
21662
2.25 HP VS Router Combo Kit 1617EVSPK
$229.99

Product Divider Image

Bosch Logo
2.3 HP VS Router Combo Kit MRC23EVSK

2.3 HP VS Router Combo Kit MRC23EVSK

Feature:

  • 10,000-25, 000 RPM; 2.3 HP (Max tool)
  • Trigger control system - trigger power switch located in handle for enhanced control
  • Smooth plunge action, spring-lock plunge lever, and depth rod for easy and precise plunge routing
  • Afterlock microfine depth adjustment - easy & precise adjustments at any plunge setting
  • Versatile fixed-base depth adjustment - features continuous microfine adjustment range & wrench for adjustments through top of optional router table
  • Always-on LED lighting - for enhanced visibility in bit area
  • Precision centering design – makes it easy to keep bit on cut line when using jigs, templet's, dovetail fixtures and similar guidance devices
  • Two-stage quick clamp system - for fast tool-free conversion
  • Soft Start Technology — reduces start-up torque
  • Variable speed dial — for matching speed to work piece and task
  • Constant Response™ circuitry — maintains constant speed under load
  • Contoured soft grip handles — for enhanced control and comfort
  • Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
  • Cord swivel - for added mobility
  • Rugged carrying case has compartments for all included items

Includes:

  • Fixed Base
  • Plunge bas
  • 1/4" Self-Releasing Collet Chuck
  • 1/2" Self-Releasing Collet Chuck
  • 16mm Shaft Wrench
  • 24mm Collet Nut Wrench
  • T-Handle Hex Height Adjustment Wrench
  • Carrying Case
  • Pack of 3 M4 Screws for table mounting
Specifications:

Amperage 15
Base Diameter 6" fit / 7" Plunge
Case Type Hard Plastic
Collet Capacity 1/4" and 1/4"
Cord Length 10 ft
Fixed Base Depth 1-5/8"
Height 9.5"
Max. Motor HP 2.3
No Load RPM 10,000 - 25,000
Plunge Depth 3" (75mm)
Rating 120V AC
Voltage 120V
Warranty Limited 1-Year Warranty
Weight 9.3 lb
Item# Description Price Quantity
21663
Bosch 2.3 HP VS Router Combo Kit MRC23EVSK
$299.99

Product Divider Image

Bosch Logo
Quick Change Template Guide Adapter

Bosch Quick Change Template Guide Adapter - RA1126

The Bosch model RA1126 has a quick-release template guide adapter for attaching Bosch RA-series template guides to the following Bosch routers: 1613AEVS, 1617/18-Series, 1619EVS, MRF23EVS, MRP23EVS, MRC23EVSK, and PR20EVSPK and router bases: RA1160, RA1161, RA1162, RA1166, MRF01, MRP01 and PR011. The RA1126 also accepts the Bosch RA1100 interface adapter for threaded 1-3/16-inch template guides.

Features:

  • Accepts the RA1100 interface adapter for threaded 1-3/16-inch template guides
  • Also for attaching Bosch RA-series template guides to select Bosch router bases
  • Quick-release template guide adapter
  • Adapter for attaching Bosch RA-series template guides to select Bosch routers
Item# Description Price Quantity
21747
Bosch Quick Change Template Guide Adapter - RA1126
$14.99

Product Divider Image

Bosch Logo
Threaded Template Guide Adapter

Bosch Threaded Template Guide Adapter - RA1100

For use w/ routers that use tool-free templet guide adapter system - Features: for use w/ Bosch routers that use tool-free templet guide adapter system * Allows use w/ Porter-Cable, Black & Decker, or any similar threaded templet guides w/ older Bosch routers - Specifications: Part Number: RA1100, Used on Model No. : 1613 / 1614 / 1617 / 1618 / 1619EVS series routers & bases.

Features:

  • Requires RA1126 Templet guide adapter (sold separately) for use with select Bosch routers
  • The 1600 Bosch routers RA1126 is required on are: 1613AEVS, 1617 Series, and 1618-Series
  • Other routers RA1126 is required on are: MRF23EVS, MRP23EVS, MRC23EVSK and PR011
  • Requires PR009 Templet guide adapter (sold separately) for use with select Bosch routers
  • The PR009 is required for use with PR011 and fixed used with PR10E and PR20EVS
Item# Description Price Quantity
10362
Bosch Threaded Template Guide Adapter - RA1100
$8.99

Product Divider Image

Bosch Logo
Threaded Template Guide Adapter

Bosch Threaded Template Guide Adapter - RA1110

For use with Bosch routers that use the Bosch standard style. template guide adapter system. Allows use of Porter-Cable, Black & Decker, and any similar threaded template guides.

Used on Model No.

1600, 1601, 1601A, 1602, 1602A, 1603, 1604, 1604A, 1606, 1606A, 1611, 1611EVS, 1615, 1615EVS to accept threaded template guides.

Features:

  • Adapts Bosch Routers To Accept Porter Cable Type Template Guides.
  • Will Not Work With: Bosch Routers 1613,1614, 1617 Or 1618.
Item# Description Price Quantity
10363
Bosch Threaded Template Guide Adapter - RA1110
$12.99

Product Divider Image

Bosch Logo

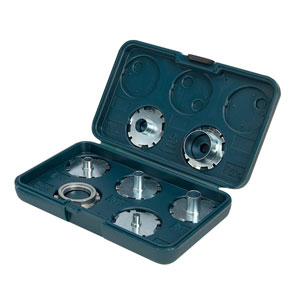

7-Piece Router Template Guide Set

Bosch 7-Piece Router Template Guide Set - RA1125

he Bosch RA1125 7-piece router template guide set works directly with Bosch 1613EVS and 1614EVS routers. It requires RA1126 templet guide adapter (sold separately) for use with Bosch 1613AEVS, 1617 series, 1618-series, 1619EVS, MRF23EVS, MRP23EVS, MRC23EVSK and PR011. Requires the PR009 sub-base (sold separately) for use with the Bosch PR011 fixed base included with PR10E and PR20EVS palm routers.

Features:

  • A 7-piece tool-free router template guide kit with aluminum construction
  • Includes most popular template guide sizes and RA1100 interface
  • The RA1100 interface piece accepts common threaded template guides
  • Requires RA1126 templet guide adapter for use with certain Bosch routers
  • Requires PR009 sub-base for templet guides to be used with PR10E and PR20EVS
Item# Description Price Quantity
21752
Bosch 7-Piece Router Template Guide Set - RA1125
$29.99

Product Divider Image

Previous Page
