General Logo
EZ Pro Mortise & Tenon Jig

General® EZ Pro Mortise & Tenon Jig

The EZ Pro Mortise & Tenon Jig is a quick and easy solution to rout matching mortise-and-tenon joints. The fully assembled jig includes everything you need to use your plunge router to add the strength of 1/4" mortise-and-tenon joints to cabinet and furniture projects. Accommodates stock from 1/2" to 1-1/2" thick of any length; multiple mortises in a single long piece. Mortise and tenon joint: minimum length,1" +/- 1/8"; maximum length, 3" +/- 1/8" with lengths depending on diameter of bit. Quick-Change router base bushing assembly includes unique Porter-Cable style guide sleeve that holds special guide bushings for 1/4", 3/8" or 1/2" tenon sizes. Possible mortise and tenon thickness of 1/4", 3/8" and 1/2".

Features:

  • Compact and portable design for use in shop or at work sites made of solid 6063 aircraft grade aluminum
  • Create 3/8-inch and 1/2-inch mortise and tenons
  • Includes 1/4-inch high speed upcut spiral bit, bushing guides for 1/4-inch 3/8-inch and 1/2-inch tenons.
  • This unit can easily handle wood stock ranging from 1/2-inch to 1 1/2-inch thicknesses and can cut multiple mortises in a single long piece
  • Integrated clamps and swing arms align and secure wood for accurate joints
General® EZ Pro Mortise & Tenon Jig General® EZ Pro Mortise & Tenon Jig General® EZ Pro Mortise & Tenon Jig General® EZ Pro Mortise & Tenon Jig
General EZ Pro Mortise & Tenon Jig
Item# Description Price Quantity
20862
General® EZ Pro Mortise & Tenon Jig
$149.99

Product Divider Image

General Logo

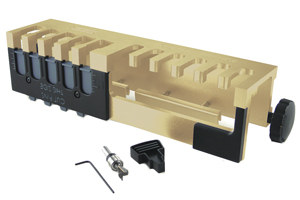

Dovetailer II

General® Dovetailer II

The Model 861 is General's all-in-one answer to producing strong, precise dovetail joints right out-of-the-box quickly and easily. Using only the jig and a handheld or table router, professionals and DIYers even novices can make half-blind or through dovetail joints as well as box joints. The self-aligning design ensures that both ends of the dovetail joint match up evenly every time, and new table router control knobs promise comfortable and accurate use. THE DOVETAILER is fully portable, includes a 1/2" dovetail router bit and features sturdy machined aluminum construction along with integrated clamps for precise attachment to the work piece. It is perfect for furniture building, cabinet making and other carpentry projects.

Features:

  • Self-aligning design ensures that both ends of the dovetail joint match up every time
  • Sturdy machined one piece aluminum construction
  • Easily adjusts the dovetail interference to create loose or tight joints
  • Integrated clamps allow precise clamping of jig to work piece while the table router control knobs assure safe, comfortable and accurate use
  • Includes 14-Degree 1/2-Inch dovetail router bit for use with hand or table router
General® Dovetailer II General® Dovetailer II General® Dovetailer II General® Dovetailer II
General EZ Pro Mortise & Tenon Jig
Item# Description Price Quantity
20861
General® Dovetailer II
$79.99

Product Divider Image
