Raised Panel Router Bits
with Back Cutters



Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a back cutter with the smooth cuts of Freud's 2+2 Raised Panel Bits. Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius back cutter gives double-sided appearance and can be replaced with optional 54-560 square back cutter for a more contemporary look.
  • Cuts all composition materials, plywood's, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Dimensions
Freud# D h m R1 R2 A H
99-566 3-1/2" 1" 5/32" - 3/16" 1/2" 3"
99-569 3-1/2" 1" 5/32" 1-1/2" 3/16" 1/2" 3"
99-571 3-1/2" 1" - 1-3/16" 5/32" 1/2" 3"
99-500 2-19/32" 7/8" - 3/4" 7/64" 1/2" 2-51/64"

Item# Freud# Description Price Quantity
2864 99-566
Chamfer Raised Panel Bit
with Back Cutter
$119.99
2865 99-569
Cove Raised Panel Bit
with Back Cutter
$119.99
2866 99-571
Ogee Raised Panel Bit
with Back Cutter
$119.99
2881 99-500
Mini-Ogee Raised Panel Bit
with Back Cutter
$120.99

Product Divider Image

Freud Logo
Raised Panel Bits

Application:
Ideal for creating raised panels for doors and paneling, as well as decorative tops, plaques and molding Revolutionary Quadra-Cut™design combines two small wings that cut downward to shear the top edge for a splinter-free surface, and two large wings that shear upward for a smooth finish.

  • Use 1/2" height for 5/8" stock. Use 5/8" height for 3/4" stock.
  • Cuts all composition materials, plywood's, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Dimensions
Freud# D n h m R1 R2 A H
99-510 2-3/4" - 5/8" 7/32" 35/64" 1/8" 1/2" 2-1/2"
99-511 2-3/4" 1-1/8" 5/8" 15/64" - - 1/2" 2-1/2"
99-512 2-3/4" 1-1/4" 5/8" 17/64" 13/64" - 1/2" 2-1/2"
99-513 2-3/4" - 5/8" 15/64" 7/16" - 1/2" 2-1/2"
99-515 3-1/2" 1-1/4" 5/8" 5/32" - - 1/2" 2-1/2"
99-516 3-1/2" 1-1/4" 1/2" 5/32" - - 1/2" 2-1/2"
99-518 3-1/2" - 5/8" 5/64" 1-1/2" - 1/2" 2-1/2"
99-519 3-1/2" - 1/2" 5/64" 1-1/2" - 1/2" 2-1/2"
99-520 3-1/2" - 5/8" 7/32" 25/32" 1/8" 1/2" 2-1/2"
99-521 3-1/2" - 1/2" - 1-3/16" 1/8" 1/2" 2-1/2"
99-522 3-1/2" 1-1/4" 5/8" - 15/64" - 1/2" 2-1/2"
99-523 3-1/2" 1-1/4" 1/2" - 5/32" - 1/2" 2-1/2"

Item# 2864Description2865 Price Quantity
2854 99-510
Ogee Raised Panel Bit
$98.99
2855 99-511
Chamfer Raised Panel Bit
$98.99
8787 99-512
Chamfer Raised Panel Bit
$98.99
8788 99-513
Roman Ogee Raised Panel Bit
$98.99
2856 99-515
Chamfer Raised Panel Bit
$98.99
2857 99-516
Chamfer Raised Panel Bit
$104.99
2858 99-518
Cove Raised Panel Bit
$104.99
2859 99-519
Cove Raised Panel Bit
$120.99
2860 99-520
Ogee Raised Panel Bit
$104.99
2861 99-521
Ogee Raised Panel Bit
$98.99
2862 99-522
Chamfer Raised Panel Bit
$104.99
2863 99-523
Chamfer Raised Panel Bit
$93.99

Product Divider Image

Freud Logo

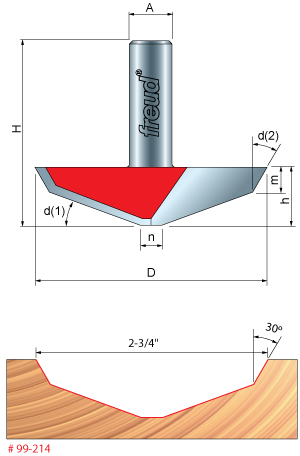

French Provincial Raised Panel Router Bit

Application:
Ideal for making decorative grooves in panels, tops and plaques

  • Produces raised panels used in doors and paneling from 3/4" stock. Adjust the length of the tongue by using a fence.
  • Cuts all composition materials, plywood's, hardwoods, and softwoods.
  • Use on CNC and other automatic routers as well as table-mounted portable routers.
Dimensions
Freud# D n h m (d1) (d2) A H
99-214 2-3/4" 1/4" 11/16" 19/64" 20° 30° 1/2" 2-3/16"

Item# Description Price Quantity
2828
French Provincial Raised Panel Router Bit
$86.99

Product Divider Image

Click here to see raised panel bit sets
