Barracuda
6 Jaw Lathe Chuck

Barracuda 6 Jaw Lathe Chuck

This exclusive and unique 6 jaw chuck is a welcome addition to our renowned Barracuda family of lathe chucks. On a 4 jaw chuck, when you spread the jaws to accommodate a larger diameter turning base, you can actually get a small gap between the jaw and the wood in the center of the jaw. This gap does not occur on the 6 jaw chuck thus providing more jaw surface area grabbing the base.

Specification:

  • Large enough & powerful enough to use on larger lathes over 12"
  • Adapts to lathes with 1-1/4" x 8TPI and 1" x 8TPI headstock threads.
  • Weighs 3.85lbs.
  • 4" Diameter
  • Thread: 1-1/4" to 8tpi.
  • Includes 1" to 8tpi adapter
  • Gripping outside is 2-1/2" to 3-1/4"
  • Gripping inside is 2" to 2-3/4".
  • Pieces in Set: 5
  • Compatible Spindle Sizes: 1-1/3 x 8tpi, 1 x 8tpi
  • Included Jaws: #2, Screw Adapter
Item# Description Price Quantity
7617
Barracuda 6 Jaw Lathe Chuck
$169.99

Product Divider Image

Barracuda

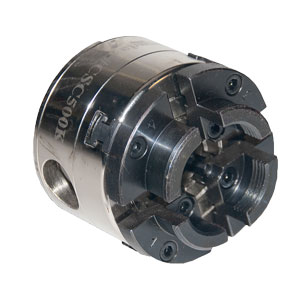

Barracuda3 micro Lathe Key Chuck System

Here is a full featured and complete key operated scroll chuck system in a small package. The keyed operation allows you to use a single hand to tighten the jaws while you other hand is free to support your work. The chuck is self centering and ideal for small cup projects, miniatures and small spindle work. This premium 4-jaw self-centering chuck system fits mini, midi and micro lathes. With a 2-1/8" body it is an ideal chuck for small projects, cups, miniatures and small spindle work. Adapts to lathes with either 3/4" x 16tpi or 1" x 8tpi. Chuck Weight only 1 lb.

Includes:

  • Mini #2 Round Jaws (pre-mounted)
  • #1 Step Jaws
  • Pin Jaws
  • Allen tightening wrench
  • Tightening Key
  • Adapter for 3/4" x 16tpi (1" x 8tpi standard)
  • Supplied in an attractive blow molded case.

Type:

Key Operated

Compatible Spindle Sizes:
3/4" x 16tpi, 1" x 8tpi
Included Jaws:
Pin,#1,#3
Pin Jaw Grip:
Internal: 7/8" to 1-5/8"
#1 Step jaw gripping:
External: 1/16 to 13/16", Internal : 5/8 to 1-3/4"
#2 Standard Jaw gripping:
External: 3/32" to 1-3/8", Internal: 11/16" to 2-3/8"
#3 Large Round Jaw Gripping:
Not Available
Large Flat Jaw Gripping:
Not Available
Small Flat Gripping:
Not Available
Category:
Barracuda 4 Jaw Chucks

Item# Description Price Quantity
7046
Barracuda3 micro Lathe Key Chuck System - CSC500K
$134.99

Product Divider Image

Barracuda Logo

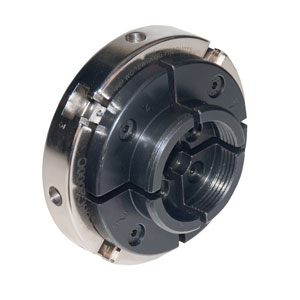

Barracuda 2000C Lathe Chuck System

Maximum Performance
Our self-centering heavy duty chuck for full-size lathes makes easy work of your heaviest and largest turnings. The geared key mechanism provides a powerful grip capable of holding large diameter work. Designed for lathes with 10" swings or larger. Includes woodworm screw chuck. Weighs 8 lbs with a 4.5" diameter. Comes in a wooden carrying case.

Includes:
  • #1 Step Jaws
  • #2 Standard Round Jaws
  • #3 Wide Jaws
  • Pin Jaws
  • Screw Chuck adapter
  • Allen wrench, key tightening levers
  • Supplied in an attractive molded plastic case
  • Includes adapter to mount to either 3/4" x 16tpi or 1" x 8tpi head stocks.

Type:

Lever Operated, "C" Style

Compatible Spindle Sizes:
3/4" x 16tpi, 1" x 8tpi
Included Jaws:
Pin,#1,#2,#3,Screw Chuck
Pin Jaw Grip:
Internal: 1" to 2-1/2"
#1 Step jaw gripping:
External: 3/32" to 1-1/2", Internal: 11/16" to 3-1/8"
#2 Standard Jaw gripping:
External: 1-1/2" to 2-7/8", Internal: 2" to 3-1/2"
#3 Large Round Jaw Gripping:
External: 3-1/16" to 4-1/2"
Large Flat Jaw Gripping:
External: up to 8-1/4" - Not Included
Small Flat Gripping:
External: up to 5-1/4" - Not Included
Category:
Barracuda 4 Jaw Chucks

Item# Description Price Quantity
7047
Barracuda 2000C Lathe Chuck System - CSC2000C
$139.99

Product Divider Image

Barracuda Logo

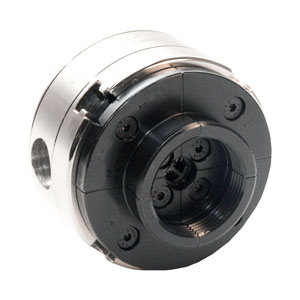

Barracuda2 Lathe Key Chuck System

One of the easiest to use, best value chucks on the market
The Barracuda2 is an easy to use, high-performance, full accessorized key operated self centering four-jaw lathe chuck system. You only need one hand to use this lathe chuck as the "T" handle jaw tightening key enables you to to tighten the jaws with only one hand while your other hand is free to support your work.

Key Benefits:

  • Easy to use with one hand operation: The "T" handle key system makes it much easier to use than the lever, non-key chuck systems.
  • Will give you more turning confidence: Because you only need one hand to tighten the jaws, you can feel more confident and comfortable supporting your work with your free hand.
  • Powerful grip: to hold your work piece securely.
  • Smooth operation & balance: The Barracuda2 system is precision engineered and machined to provide you smooth operation and minimize vibration at almost any lathe speed.
  • Compatible for most woodturning projects: The variety of included jaw sizes and accessories means the Barracuda2 lathe chuck will mount most turning projects onto your lathe; including bowls, spindles, small turning projects and more.
  • Works with any Mini Lathe, Midi Lathe or Full Sized Lathe.
  • Changing jaws is quick and easy
  • Stout storage case for easy handling and organization: The blow molded plastic case will easily store, organize and secure the complete Barracuda2 Lathe Chuck System.
  • Virtually dust free use: the wood chips and dust clear out of the chuck drive gear with ease.












Type:

Key Operated, "C" Style

Compatible Spindle Sizes:
3/4" x 16tpi, 1" x 8tpi
Included Jaws:
Pin,#1,#2,#3,Screw Chuck
Pin Jaw Grip:
Internal: 1" to 2-1/4"
#1 Step jaw gripping:
External: 3/32" to 1-3/8", Internal: 11/16" to 2-3/8"
#2 Standard Jaw gripping:
External: 1-1/2" to 2-5/8 " , Internal: 2" to 3-3/8"
#3 Large Round Jaw Gripping:
External: 3-1/16" to 4-3/8
Large Flat Jaw Gripping:
External: up to 8" - Not Included
Small Flat Gripping:
External up to 5" - Not Included
Category:
Barracuda 4 Jaw Chucks

Item# Description Price Quantity
7048
Barracuda2 Lathe Key Chuck System - CSC3000C
$189.99

Product Divider Image
