Clamps & Accessories

WS-1 Light Duty Corner Clamp

Economical alternative for fixed 90 degree angle for miter or butt joints Mounting holes to fix to work surface Adjusts to various sized work pieces with 2 spindles For light duty clamping Specifications- Clamping Capacity: Up to 3" Range of Angle: 95 degree

90° Angle / Corner Clamps

The Bessey angle clamps are designed to hold, fix and align material at right angle and automatically adjust to different wood thickness. Their accuracy makes these the clamps for a number of applications, including cabinetry, furniture assembly and their compact size makes them easy to store.

• Holds and aligns material at 90°
• For T joints and mitered corners
• Galvanized spindle with large threads.
• Accurate and super durable jaws.
• Plastic coated jaws to protect wood.
• Wide open design to allow room to dowel, screw,or stable material together while gluing.


WS-3

• 1-3/16" maximum passage for T joints.
• Opening Accommodates up to 2-3/16" per side


WS-6

• 2-7/16" maximum passage for T joints.
• Opening Accommodates up to 4" per side

Table Mount Clamps

Works Bessey® WS-3, WS-6, S-10, S-15, and K-Body® Revo™ to work surface. Add Table Mount clamps to holes on handle side of clamp to any surface up to 2-1/4" thick.

90° Corner Clamp

Our 90° Angle clamp features the power flex handle, which allows you to pull the handle out and rotate it to apply extra holding power to your stock. The clamp is perfect for gluing up frames, T-miters or just holding the stock in place. The unique design of the clamp automatically adjusts to the thickness of your stock as you tighten. Two holes are pre drilled on the bottom side of the clamp to accept table clamps (not included- sold separately) to keep the 90° clamp secure to the table top.

Table Clamps

Table Clamps are designed for use with the 90° Corner Clamps. There are two pre-drilled holes on the bottom side of the 90° Corner Clamp that allows the Table Clamps to fit snug & firm. This allows the 90° Corner Clamp to be secured to any work bench or table top and hold your work piece in place. 2 Pack

Note: Requires one pair Table Clamps for one 90° Corner Clamp.

90° Corner Clamp

The Kreg® 90° Corner Clamp gives you the helping hand you need to hold 90° corners and “T” joints together securely when you’re assembling boxes, drawers, cabinets and cases. Plus, the 90° Corner Clamp leaves both of your hands free to add your fasteners. The 90° Corner Clamp is the fastest, easiest-to-use corner clamp you can buy thanks to Kreg Automaxx® auto-adjusting technology.

The easy way to hold 90° corner joints and “T” joints in boxes, cabinets, and cases

• Works on 90° corners and “T” joints
• 1" maximum capacity
• Cast aluminum “V” and wedge clamp pads
• Automaxx® auto-adjust technology
• Easy-to-regulate clamping pressure with thumbwheel
• Cutout allows driving a pocket-hole screw without removing clamp
• Padded, ergonomic handles
• Self-squaring; automatically aligns joints to 90° angle; Automaxx™ auto-adjust technology

The 90° Corner Clamp helps hold assemblies like boxes, cabinets, drawers and cases together to ensure that you get strong, tight-fitting assemblies—whether you’re using Kreg pocket-hole joinery, or another method. The clamp’s V-wedge jaws grip the mating pieces securely, ensuring that the pieces sit at precise 90° angles while you drive in Kreg Screws, or even another type of fastener, such as a nail or wood screw.

The 90° Corner Clamp features all-metal construction, including cast-aluminum pads—an outer "V" and inner wedge—that press against the inside and outside faces of the two pieces being joined in order to hold those pieces at a 90° angle to one another. Edge stops also help align the edges of the pieces to ensure accurate assembly of structures like boxes, cabinets, drawers, and cases.

Thanks to Automaxx® auto-adjust technology, all you have to do is squeeze the clamp handles. The clamp will automatically close with the amount of pressure you have set, regardless of the material, whether you’re using thin plywood for drawers, or materials up to 1" thick.

Right Angle Clamp

The Right Angle Clamp makes projects with 90° joints faster and easier than ever by giving you the helping hand you need to hold the parts in position as you drive in the screws. Just slip the pin on the Right Angle Clamp into a pocket hole, close the clamp, and it draws the mating pieces tightly together. The swiveling clamp pad opposite the pin grabs the mating piece securely.

The secret weapon for pocket-hole construction—now with Automaxx® Technology

• 3-1/2" reach (89mm); clamps
• materials up to 31/8" thick (79mm)
• Auto adjusts to match material thickness
• Steel pin fits snugly into pocket hole
• Swiveling pad secures mating piece
• Adjustment knob provides easy-to-regulate clamping pressure
• Ergonomic padded grips prevent hand fatigue

Thanks to Automaxx® Auto-Adjust Technology, the Right Angle Clamp adjusts to match the material automatically with a simple squeeze of the handles. This handy clamp works with all kinds of materials, from thin 1/2" plywood to thick 2x4 boards.

Clamp Using the Pocket Hole The steel pin on this clamp is shaped to fit snugly into a pocket hole, securely anchoring one workpiece against the other for easy assembly. Just drive a screw into an adjacent pocket hole while the Right Angle Clamp holds the piece steady for you.

Swivel Pad for Solid Clamping The arm opposite the pin features a pad that swivels to fit tight against your material, so you can count on solid clamping without a chance of the joint shifting.

Ultra-Wide Reach Whether you’re joining two thin drawer sides for a cabinet, or thicker materials to frame an outdoor project, the Right Angle Clamp opens wide to get the job done.

Use One Clamp, or Use Two Many woodworkers find it handy to use two Right Angle Clamps when assembling large workpieces. Place a clamp on each end to hold the wood while you drive screws in the remaining pocket holes.

Spring Miter Clamp Set

The easiest way to clamp mitered corners on just about anything! Great for moldings, trim and frames. Choose the appropriate size spring clamp and use the spreader to open and position the spring clamp.

The kit Includes:

• 4 ea. 1/2” to 3/4” Spring Clamps
• 4 ea. 11/16” to 1” Spring Clamps
• 4 ea. 1“ to 1-3/8” Spring Clamps
• 4 ea. 7/8” to 13/16” Spring Clamps
• 4 ea. 1-3/4 “ to 2-3/16 “ Spring Clamps
• 4 ea. 2-1/2” to 3” Spring Clamps
• 1 ea. Form fitted storage case
• 1 ea. Spring Clamp Spreader

Each size clamp is available in 8pc replacement packs
(8 clamps of the same size are in each pack 2993 - 2998).

Clamping Squares

90° angle can be challenging more often than not. A simple solution is to place a square in the corner of the two stock pieces you need to square and secure with a set of clamps, this however can be frustrating. Now with our Clamping squares, you can do just that without having to find a square thick enough to accept a standard clamp. The clamping squares are 3/4" thick to make clamping and placement a breeze. Each square is made from aluminum and machined with a tolerance of +/- .001. The squares have beveled edges and are anodized to resist staining. The squares are available in two sizes: 2-3/4" and 6" and come in packs of two.

Square 90

This simple and affordable Square 90 becomes your third hand while assembling cabinets, drawers or any project that requires a 90° corner to be held in place while assembling. Made from high impact polycarbonate, the Square 90 is strong enough and durable enough for any project. Use any Clamp (sold Separately) to secure the Square 90 while assembling your projects.

The Square 90 is available in 4" or 6" size and can be clamped on the inside or outside corner of your work piece making this a very versatile Clamping Square for any project.

Note: F-Clamps not included.

Corner Pressure Clamp

Designer to work with Bar Clamps

The Corner Pressure Clamp applies pressure on the sides of your stock to corners together. The Corner Pressure Clamp will work in conjunction with any bar clamp up to 1/4" thick bar. Cast iron body.

Note: Bar clamp required for use (not included).

Variable Angle Band Clamp - VAS

Whether you need to repair a chair, fix a frame or clamp four corners all at the same time, Bessey's Variable Angle Strap Clamp adapts to whatever situation you need.

Features:

• Strap Lock — an easy-to-use mechanism for releasing and locking the strap around awkward or large assemblies.
• Specially woven 23' polyester strap for up to 1,100 lbs tensile strength with minimal stretch.
• Geared winder allows for precise adjustment — tightens strap evenly from both sides for distortion-free clamping.
• Strap winder keeps excess strap conveniently stored on spool.
• Corner clip with swivel pads clamp any angle from 60° to 180° — four clips are included with clamp.

Includes:

• 1 ea. Variable Band Clamp
• 4 ea. Vario Corner Clips

Merle Band Clamp

Flexible jaw inserts are non-marring and are easily removed. They're made of high impact ABS plastic for long life and heavy use. The dual pivot feature allows the Merle to clamp virtually any size or shape securely! Perfect for circles and ovals, plus triangles, hexagons, octagons, and more. 23-foot steel banding included. The Merle clamp has almost no capacity limitation! Clamps as small as 2-5/8" x 2-5/8 to69" x 69" or 23-feet around, but can be extended to any length by using standard 3/8-inch steel banding or strapping. The Merle clamp will hold any type of frame for easy gluing, nailing or screwing. Even jointing force at all corners. It's excellent for wide cabinet type frames (use in the center or edges), and also for narrow picture frames. The adjustable Merle clamp allows you to use as much or as little clamping pressure as needed. Cast aluminum and steel construction makes the Merle clamp a tough tool that will work hard and long for you. Quick Release Corner Clips pull off with finger pressure. Just clip on more corners and get to work!

Features:

• Clamps as small as 2-5/8" x 2-5/8 to 69" x 69" or
  23' around
• Clamp any shape with ease
• Self-adjusting, non-marring jaw inserts align to any angle
• Perfect for cabinet frames and picture frames
• Quick release corners allow quick adjustment

15' Band Clamp

This 15’ Band Clamp applies even clamping pressure all the way around difficult-to-clamp items, such as octagons, circles and so on. One inch wide nylon webbing and ratchet mechanism applies plenty of clamping pressure.

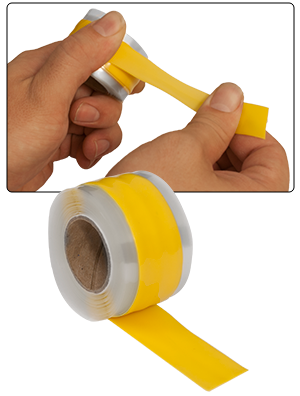

X-Treme Clamp Tape

X-Treme tape quick clamp wrap eliminates the need for special clamp designs or clamps that can damage the finish. No weak bonds or gaps from wood movement - 300 elastic stretch. Sticks only to itself - no adhesive clean up. No tape adhesive to affect the wood or finish surface. Soft silicone is inert to most finishes. After the glue dries, simply cut the tape free.

Titewrap™

Titebond Titewrap eliminates the need for traditional clamps and secures your project while the glue dries! This self-adhering wrap sticks only to itself and won’t damage the wood surface. It is perfect for irregular joints or pieces that are difficult to clamp. When finished, simply cut the wrap away!

• 700 psi strength and 300% elastic stretch
• Self-bonding – Won’t damage wood surface
• Ideal for interior/exterior woodworking projects
• Eliminates need for traditional clamps
• Performs in high temperatures
• UL Listed for use at not more than 600 V and at not more than 80°C (176°F)
• Adheres only to itself Excellent moisture resistance
• Conforms to PROP 65
