Jet
1-1/2HP Shaper JWS-22CS

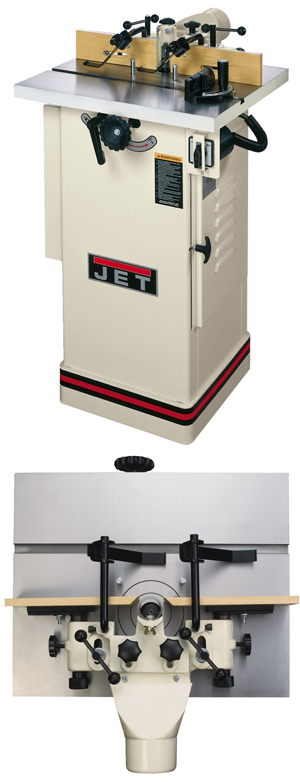

Jet 1-1/2HP Shaper JWS-22CS / 708320



Click Here For
Larger Image



Note:
Standard Shipping Rate Applies
Plus $120

Shipping Weight: 211 lbs

If you're looking for a space-saving shaper for your shop, the new JET JWS-22CS Shaper is what you need. This compact powerhouse features a 7000 and 9000 RPM reversing 1-1/2HP motor. The large 22-3/8" x 18-1/8" precision ground cast iron table provides a large, durable, work area. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. If you feel you just don’t have the space, the nominal 23" x 25" footprint of this workhorse is sure to change your mind. Put the new JET JWS-22CS Shaper in your shop today, you'll know why JET products are "Built Better to Build Better."

Features:

  • Starting Pins for irregular shaping Forward/reverse switch for left and right hand operation
  • Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters
  • Independent left and right fences feature micro-adjustment and have zero-clearance capability
  • Extra-large handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Positive detent spindle lock allows safer, easy cutter set-up
  • 4" dust port connects to your collection system to keep your workplace dust and debris-free
  • Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
  • 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
  • Powerful 1-1/2HP motor delivers dependable power, even on heavy jobs
  • 22-1/4" x 18-1/8" solid cast iron table provides a durable work area
  • Two adjustable work hold-downs to secure your work while shaping



Specifications:

Spindle Speed: 7000/9000 RPM
Maximum Spindle Diameter: 1/2", 3/4"
Spindles Included: Yes
Spindle Size Under Nut: 1/2" (2-1/2"),
3/4" (2-15/16")
Spindle Travel: 1-7/16"
Router Bit Collet Included: 1/4", 1/2"
Table Opening Diameter: 5-1/4"
Table Insert Opening Diameter: 1-5/8", 3-1/4"
Table Size: 22-1/4" L x 18-1/8" W
Table T-Slot: 3/4" x 3/8"
Table Height from Floor: 33-1/2"
Fence Size: 10" Lx 3-1/8" H
Dust Port Outside Diameter: 4"
Motor Power: 1-1/2 HP
Motor Phase: 1 PH
Motor Voltage: 115/230 V.
Prewired Voltage: 115 V.
Motor Amps: 12/6 Amps
Item# Description Price Quantity
8471 Jet 1-1/2HP Shaper JWS-22CS / 708320 $1142.99
