Router Accessories

Precision Router Table Set Up Bars
Set of 7

Kreg Precision Router Table Setup Bars make adjustments to router tables, shapers and table saws very simple and very precise. Unique design straddles the router bit or saw blade to allow for more precise height adjustment. Step on the top edge of each setup bar acts as a gauge to test the depth of your completed cuts. Step on the end of each setup bar used to test the fence depth of a tablesaw blade or router bit. Made from a soft aluminum designed to prevent damage to your router bit or saw blade if contact is made during setup. Set includes 7 setup bars stored in a portable case that protects the bars and makes it easy for woodworkers to locate the correct bar for their application.

Sizes: 1/8, 3/16, 1/4 5/16, 3/8, 7/16, 1/2.

Features:

• Unique design straddles the Router Bit or saw blade to allow for more precise height adjustment
• Step on the top edge of each setup bar acts as a gauge to test the depth of your completed cuts
• Step on the end of each setup bar used to test the fence depth of a table saw blade or Router Bit
• Made from a soft aluminum designed to prevent damage to your Router Bit or saw blade if contact is made during setup

Brass Bars

These Solid Brass Bars allow you to accurately determine the proper depth of your cuts, fence to cutter distances, material thickness and more without the use of tape measures or calipers. The brass bars also prevent damaging the carbide on the router bit. The brass bars can be stacked to get measurements from 1/8" to 1-7/16".

The set Includes:

• 1 ea. 1/8" Square x 4" Long Brass Bar
• 1 ea. 3/16" Square x 4" Long Brass Bar
• 1 ea. 1/4" Square x 4" Long Brass Bar
• 1 ea. 3/8" Square x 4" Long Brass Bar
• 1 ea.1/2" Square x 4" Long Brass Bar

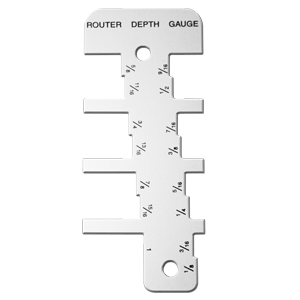

Router Depth Gauge

This aluminum Router Depth Gauge makes router set up fast, easy and simple. You simply set the Router Bit Depth Gauge across your cutter (router bit) and adjust the router bit to the required setting. The aluminum Router Depth Gauge is clearly marked in inches. The Router Depth Gauge is designed for setting cutter depths from 1/8” to 1” in 1/16” increments.

Depth Gauge

Quickly and accurately measure, mark or locate blade or bit heights and table or fence offsets. Easily lock and unlock scale with easy thumb lever. Metal scale measures in millimeters and inches.

Features:

• Wide stance and large feet stand over most tablesaw throats
• Rigid design for precise measurements
• Thumb lock lever easily locks and unlocks scale
• Metal scale measures in inches and millimeters
• Easy view window for accurate setting

6" Digital Multi Gauge

Set the heights of router bits and saw blades with greater accuracy! This 3-in-1 digital router combines the functions of three tools: a depth gauge, height gauge and thickness gauge. It is a metal rule with a Super Large LCD display, housed in a heavy-duty polycarbonate frame which allows it to stand freely. The measuring range is 0-6", with a router depth of 0-3.10" and a slot depth of 2.90". It features buttons for on/off as well as zero set functions, and it easily switches readings from inches to metric to fractions at a touch. Two hardened steel measuring anvils (flat and point) are included.

Features:

• 0-6" full range digital gauge: height, depth and welding thickness
• 3-way measuring: horizontal, vertical, 90° angle
• 3-way reading: inch, inch fractional, metric
• Accurate to within 0.001" per 1"
• EZ view with super large LCD display
• 3 angles on gauge body: 70°, 80°, 90°
• Heavy-duty polycarbonate frame for free-standing measuring
• Hardened steel measuring anvils:
  flat and one with a point
• Locks for accuracy
• Operates on one 3V CR2032 battery (included)

Depth Gauge

With the Trend self standing, depth gauge, it has never been easier to accurately set the height of router bits and saw blades. The steel rule has dual metric and imperial scale, is accurate to 1/32" and offers a range of measurement from 0 to 3-1/8".

Features:

• Horizontal and vertical measuring
• 2-3/8-Inch wide
• Accurate to 1/32-Inch
• Unique cam lever lock
• Dual metric and imperial scale

Digital Depth Gauge

Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.

Features:

• For hand routers, router tables and saw benches.
• LCD readout for mm, imperial and fractions with auto shut off 5 min's.
• Removable pin to allow hole depths to be measured.
• Pin can be parked on arm. Hole depth 2 inch.
• Self standing with magnetic feet and flat back.
• Injection plastic molding with plastic rule.
• Read-out has relative co-ordinate and absolute function.
• 2-3/8 inch wide aperture.

Includes:

• Digital Depth Gauge
• 1 x 3V CR2032 lithium battery

Muti-Max Shop Gauge

The Multi-Max is two depth gauge measuring systems, a chisel angle checker and drill point gage in one easy to use tool.

Features:

• Drill Point Gauge -Properly sharpened drill bits save time and money. Let the Multi-Max be your guide to a perfectly sharpened drill bit every time.
• Chisel Angle Gauge -End the guess work when sharpening chisels. Place your chisel into the Multi-Max chisel checker for the optimum chisel angle.
• Depth Gauge - Easily check the depth of grooves, dados, holes, material thickness and much more with Multi-Max. Stainless steel rule with deeply etched markings are easy to read and will never wear off.
• Router Bit Depth Gauge - Set the depth / height of router bits accurately. Place the the Multi-Max on the base of the router or router table top and raise the bit to match the dept / height you need.
• Height Gauge - Check heights up to 3'.  Uses the same stainless steel rule as the dept gauge. Calibrated in inch and metric unties.

Snap Depth Gauge

Measure depths from 0 to 4" with inch, metric or fraction readout modes! Spring loaded travel provides accuracy to 0.001". Check the depth of slots, dovetails, mortises,dadoes and more. Quickly quantify table saw run out and measure the flatness of your blade. Interchangeable 1" and 2" measuring bars included.

• Requires CR 2032 battery (Included)

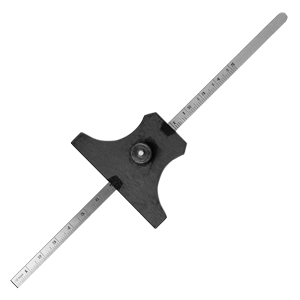

6" Depth Gauge

Has 2-3/8” wide hardened steel base. Spring tension nut eases depth and angle measuring by securing rule in milled slot at 90º to base. Permits easy setting of protractor angle to 30º, 45º and 60º settings on one side. 6” etched stainless
steel rule graduated in 64ths and mm on the other side.

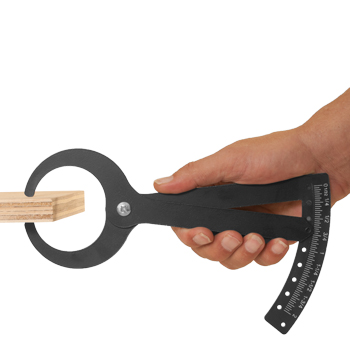

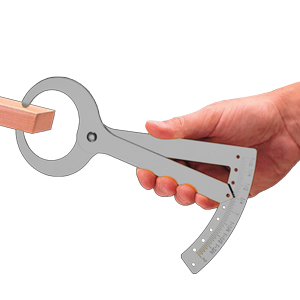

Thickness Gauge

Just “pinch” your wood to read its thickness - from 1/16” to 2” in 1/32” increments. The expanded rear scale is easily read, and includes preset holes at 1/4” intervals for use as a go-no-go gauge, a handy feature for repetitive surface planning or checking turning diameters.

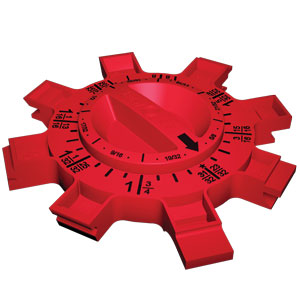

EZ Set Router Bit Set Up Tool
for Freud® Router Bits

Easy-Set 13 Different Freud® Router Bits

How many times have you been frustrated trying to set you lock miter bit to the correct cutting height? How many test cuts would you have to make? How much wasted time and material would you have?®

Now, with the new Easy Set for Freud® router bits you can position your router bit perfectly the first time, every time, in any thickness of wood - from 23/32" (3/4" plywood) to 1-3/16" thick stock. Once your Easy Set and router bit is aligned you will set your router fence accordingly. The Easy Set is made of a special compressed plastic that will not distort and comes with the capability to set the exact height of eight different router bit profiles which means it will cover 13 different Freud® bits. Five of those bits are the hardest ones to set up: baby lock miter bit, 22 1/2 deg. lock bit, large lock miter bit, drawer lock bit and the reverse glue joint bit. The other three are our most popular bits: glass panel cope cutter, all four types of stile & rail cope cutter, and all three types of raised panel bits with back cutter. Because the stile and rail bits along with the panel bits all use the top of the bit to set the height the Easy Set only needs one profile to cover all the panel bits and one profile to cove all the cope bits. Easy Set adjusts to any material thickness from 23/32" to 1-3/16"

Note: Works with selected Freud® router bits only.
