Clamps & Accessories

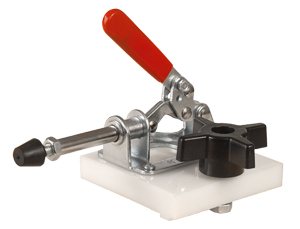

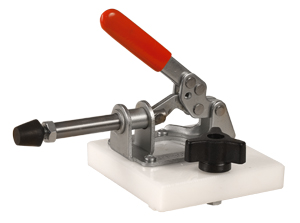

Large Push Toggles & Large Mounted Push Toggle Clamps

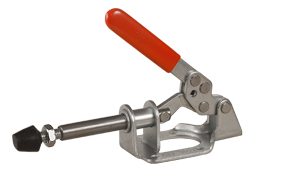

#1149 Large Push Toggle Clamp

These Push Toggle Clamps are for keeping stock tight against fences for drilling or cutting. Constructed of high grade steel with easy grip handles. Can be mounted to any jig or fixture with wood screws (not included). Adjustable rubber pressure tips.

Note: #1149 does not include any mounting hardware

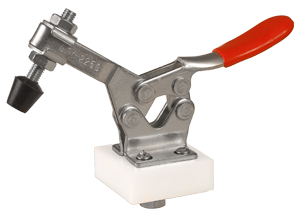

Standard Large Toggle Clamp & Large Mounted Toggle Clamps
500 lb Holding Capacity

#1148 Large Toggle Clamp

Large Spindle Horizontal Handle Quick Release Toggle Clamps are ideal for use in a variety of applications, including jigs, bench holdfast's, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners. (Not Included)

Note: #1148 does not include any mounting hardware

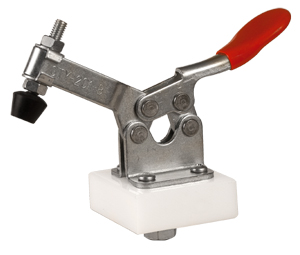

Standard Small Toggle Clamp & Small Mounted Toggle Clamps
200 lb Holding Capacity

#1147 Standard Small Toggle

Small Spindle Horizontal Handle Quick Release Toggle Clamps are ideal for use in a variety of applications, including jigs, bench holdfast's, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners.

Note: #1147 does not include any mounting hardware

Mini Toggle T-Track Hold Down

This toggle is perfect solution for holding light duty stock in place along a fence. Simply attach to a T-slot track, move it into position and secure. the extra long bolt comes with the toggle allows you to secure your stock well below the top of your fence.The finger tighten nut allows you to position the toggle anywhere along your fence and easily secure. The mini T-Track Hold Down provides up to 35 lbs of holding pressure on your stock and has a rubber tip to prevent marring. The large 2" Bolt allows you to adjust vertically to compensate for different size stock.

Features:

• Up to 35 lbs holding pressure
• Large 2" bolt for your vertical adjustment
• Small in size, perfect for fence systems

More Toggles & Accessories
Toggles listed below out of package will Not work with T-Track.

Small Vertical Handle Toggle Clamp

Features:

• Secure and release with lever
• Ideal for bench holdfasts
• Adjustable rubber pressure tips
• Extra Long U-Bar 2.27”
• Flanged Base
• Straight Handle
• Holding Capacity: 200 lbs.
• Bar opens 100º, Handle 60º

Mini T-Handle Toggle Clamp

Feature:

• Perfect for lighter duty projects
• Secure and release with lever

• Ideal for bench holdfasts
• Adjustable rubber pressure tips
• Unique finger grip T handle, Extremely compact design, U shaped clamping bar, Flanged base
• 150 lbs holding capacity Arm opens 90° while handle moves 170°
• Oil and Stain resistant red vinyl hand grip
• Clamp supplied with #10-32 x 1-3/8 flat cushion neoprene cap spindle
• Overall Height 1.40 In
• Overall Length 2.26 In Height Under Arm 0.52 In
• Does not include mounting screws

Mini Push Toggle Clamp

Features:

• Perfect for lighter duty projects
• Secure and release with lever
• Ideal for bench holdfasts
• Adjustable rubber pressure tips
• Light duty Plunger clamp that locks in extended or retracted position
• 5/8" plunger travel
• 100 lbs holding capacity
• Oil and Stain resistant red vinyl hand grip
• Does not include mounting screws

Mini Vertical Toggle Clamp

Features:

• Perfect for lighter duty projects
• Secure and release with lever
• Ideal for bench holdfasts
• Adjustable rubber pressure tips
• 110 lbs holding capacity
• Arm opens 100° while handle moves 56°
• Oil and Stain resistant red vinyl hand grip
• Clamp supplied with #10-32 x 1-3/8 flat cushion neoprene cap spindle
• Overall Height 3.00 In
• Overall Length 2.00 In
• Height Under Arm 0.76 In

Mini Toggle Clamp

Features:

• Perfect for lighter duty projects
• Secure and release with lever
• Ideal for bench holdfasts
• Adjustable rubber pressure tips Extra Long U-Bar 2.27”
• Flanged Base,
• Straight Handle
• Holding Capacity: 200 lbs.
• Bar opens 100º,
• Handle 60º

Bessey Auto-Adjust Toggle Clamps
Clamp different thicknesses of wood without making and adjustments!

Horizontal Auto-Adjust Toggle Clamp
Low Profile STC-HH50

Features:

• Auto-Adjusts to variations in work piece height from 0-40 mm (approx 1-9⁄16")
• Holding capacity up to 700 lbs (nominal)
• Integrated pressure screw allows clamping force adjustment from 25-550 lbs
• Large ergonomic handle
• High quality construction
• Base construction is optimized for1/4" (M6) fasteners
• Spindle has an M8 thread

Horizontal Auto-Adjust Toggle Clamp
High Profile STC-HH70

Features:

• Auto-Adjusts to variations in work piece height from 20-60 mm (approx 2-3/8")
• Holding capacity up to 700 lbs (nominal)
• Integrated pressure screw allows clamping force adjustment from 25-550 lbs
• Large ergonomic handle
• High quality construction
• Base construction is optimized for 1/4" (M6) fasteners
• Spindle has an M8 thread

Bessey® Horizontal Auto-Adjust Toggle Clamp
Low Profile STC-HH20

Features:

• Auto-Adjusts to variations in work piece height from 0-20 mm (approx 1-3/16")
• Holding capacity up to 450 lbs (nominal)
• Integrated pressure screw allows clamping force adjustment from 25-250 lbs
• Large ergonomic handle

Horizontal Auto-Adjust Toggle Clamp
Low Profile STC-HA20

Features:

• Auto-Adjusts to variations in work piece height from 0-20 mm (approx 13⁄16")
• Holding capacity up to 450 lbs (nominal)
• Integrated pressure screw allows clamping force adjustment from 25-250 lbs
• Large ergonomic handle

Horizontal Auto-Adjust Toggle Clamp
Low Profile STC-HV20

Features:

• Auto-Adjusts to variations in work piece height from 0-20 mm (approx 13⁄16")
• Holding capacity up to 450 lbs (nominal)
• Integrated pressure screw allows clamping force adjustment from 25-250 lbs
• Large ergonomic handle

Push Pull / Inline Auto-Adjust Toggle Clamp
Low Profile STC-IHA15

Features:

• Auto-Adjusts to variations in work piece height from 0-10 mm (approx 3/8")
• Holding capacity up to 450 lbs (nominal)
• Integrated pressure screw allows clamping force adjustment from 25-250 lbs
• Large ergonomic handle

Push Pull / Inline Auto-Adjust Toggle Clamp
Low Profile STC-IHH15

Features:

• Auto-Adjusts to variations in work piece height from 0-10 mm (approx 3/8")
• Holding capacity up to 450 lbs (nominal)
• Integrated pressure screw allows clamping force adjustment from 25-250 lbs
• Large ergonomic handle

Push Pull / Inline Auto-Adjust Toggle Clamp
Low Profile STC-IHH25

Features:

• Auto-Adjusts to variations in work piece width up to 0-16 mm (approx 5/8")
• Holding capacity up to 700 lbs (nominal)
• Integrated pressure screw allows clamping force adjustment from 25-550 lbs
• Large ergonomic handle
• High quality construction
• Base construction is optimized for 1/4" (M6) fasteners
• Plunger has an M8 thread

Replacement Bolts / Rubber Tip
for Large, Standard Small & Push Toggle Clamps

Replacement bolts with rubber pads for when your Toggle Clamps and/or your Push Toggles wear down.

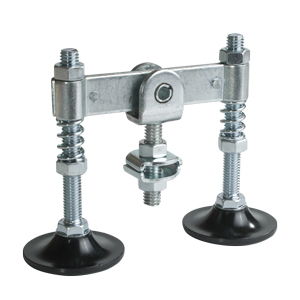

Dual Pad Assemble Kit
for Large Toggle Clamps

Attach the Dual Pad Assembly Kit to your large size toggle clamp to increase your clamping capacity width. Grate for shop made jigs and fixtures and special assembly aplications.The Dual Pad Assembly fits most standard large toggles that accept 5/16" bolts.

Note: Toggle not included

Large Swivel Toggle Foot Pads

These oversized clamping foot provides more stable clamping pressure and does not mar on soft woods. Swivel-action foot is perfect for clamping angled stock, and measures 1-5/8" in diameter. The clamp foot will fit most toggle clamps. Toggle clamp not included.

#1161 Includes:
• 1ea. 5/16" x 18 tpi x 6" long bolt with hex nuts & washers

#1394 Includes:
• 1ea. 1/4" x 20 tpi x 2" long bolt with hex nuts & washers

#1395 Includes:
• 1ea. 1/4" x 20 tpi x 6" long bolt with hex nuts & washers

#1396 Includes:
• 1ea. M8 x 18 tpi x 2" long bolt with hex nuts & washers

Toggle clamp Not included
