Drilling / Boring

Deck Jig

Create a better, more-beautiful deck with the Kreg® Deck Jig™. This concealed-fastening system works together with Kreg Deck Screws to allow you to install decking without visible fasteners, so all you see is the beauty of your decking instead of a bunch of screws. The Deck Jig features hardened-steel guides to drill precisely positioned pilot holes, and to guide Deck Screws to attach decking from the edge solidly and invisibly—whether you’re using solid-wood or composite deck boards.

Deck Jig System includes:

• 1 ea. Deck Jig
• 1 ea. Deck Jig Drill Bit
• 1 ea. Deck Jig Driver Bit
• 2 ea. Stop Collars
• 1 ea. Hex Wrench
• 3 ea. ¼" Spacer Rings
• 1 ea. Owner's Manual

The Deck Jig makes drilling the stepped pilot holes and driving screws easy in all situations thanks to three hardened-steel guides — one at 90° to the board edge, and two at opposing 45° angles — that allow easy access when working near walls, as well as when creating strong joints where boards butt together end to end. The stepped drill bit creates a perfectly positioned pocket hole and clearance hole for the Kreg Deck Screw, while a stop collar ensures prefect drilling depth.

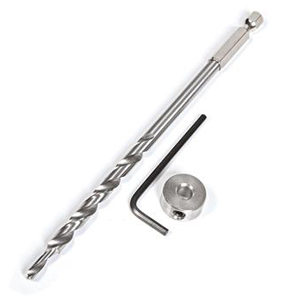

Deck Jig™ Drill Bit Set

This single-piece stepped drill bit was designed exclusively for drilling concealed holes with the Kreg Deck Jig™. The bit creates an unobtrusive hole on the edge of your deck boards. The bit comes complete with a depth collar that controls the depth of your drill bit when drilling. The depth collar is secured in place on the bit with the included Allen wrench. This Deck Jig™ drill bit and the KTX driver bit that came with your Deck Jig™ are fully compatible with standard 1/4" (6mm) Quick-Change chucks.

Features:

• Single-piece stepped drill bit
• Comes standard with the Kreg Deck Jig™
• High-quality, durable hardened steel
• 1/4" (6mm) Hex shank prevents slippage
• Quick-Change compatible

For Use with: This drill bit was designed exclusively for use with the Kreg Deck Jig™.

Deck Jig™ Driver Bit Set

This hardened-steel driver bit features a KTX #1 square tip for positive bit engagement and a Quick-Change compatible shank. It was designed specifically for use with the Kreg Deck Jig™, and comes with an Allen wrench and depth collar to ensure precise depth setting. This Deck Jig™ Driver Bit and the KTX Drill Bit, which came with your Deck Jig™, are fully compatible with standard 1/4" (6mm) Quick-Change chucks.

Features:

• KTX #1 square tip
• Comes standard with Kreg Deck Jig™
• High-quality, durable hardened steel
• 1/4" (6mm) hex shank prevents slippage
• Quick-Change compatible

Includes:

• 1 ea. Kreg Deck Jig™ driver bit
• 1 ea. stop collar
• 1 ea. Allen wrench
