Fulton
Ellipse & Circle Jig

Fulton Ellipse & Circle Jig
Fulton Ellipse & Circle Jig Fulton Ellipse & Circle Jig Fulton Ellipse & Circle Jig PDF Instructions
Instructions

Tabletops, elliptical picture frames, and signs!

Tabletops, elliptical picture frames, and signs are just a few of the woodworking projects you can make using the Fulton Ellipse and Cirlce cutting Jig. It's easier to set up and even easier to use to create a perfect ellipsee or circle. By mounting your router on the jig arm and laying out your pattern, you are set to make ellipses or circles of varing sizes. this sliding jig system allows for circles up to 52" in diameter. the jig is predrilled for most porter cable 690/890 routers and routers with 6" base footprint. Depending on your router you may need to drill your own mounting holes into the jig. Made from laminate and HDF material.

Note: Router not included

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
1262 Fulton Ellipse & Circle Jig $59.99

Fulton
Ellipse & Circle Jig
with Vacuum Base

Fulton Ellipse Jig with Vacuum Base
Fulton Ellipse Jig with Vacuum Base Fulton Ellipse Jig with Vacuum Base Fulton Ellipse Jig with Vacuum Base Fulton Ellipse Jig with Vacuum Base



Watch Video



See Instructions



Shop Note: If you have a Venturi Vacuum Switch (not included), you may use the vacuum to hold the base to your project instead of using wood screws.

The Ellipse & Oval Cutter with Universal Base is used with your router to make circles from 25-1/4" to 90" diameter or ellipses from 25-1/4" x 29" to 79" x 88". This jig allows you to make Ellipse and/or round table tops as well as mirrors, picture frames and specialty moldings. Secures quickly and easily to your workpiece by placing four screws through the corner mounting holes on the universal base. Or the universal base will work with a venturi vacuum attachment (Not Included) for 500 lbs. of solid clamping pressure. The Ellipse & Circle Cutter with also includes a pre-drilled universal router base plate that is designed to work with most of the popular routers.

Features:

  • The heavy-duty clear Universal Router Base Plate is pre-drilled to accept most routers (including 3HP) and has visibility of work area and the router bit.
  • Accurate one-time centering of base plate and bushings
  • Cut ellipses with a major/minor diameter difference of up to 9".
  • Smooth action X & Y axis movement
  • Cut circles from 25-1/4" to 90"
  • Cut ellipses from 25-1/4" x 29" to 79" x 88"
  • Vacuum ready (vacuum not included)
California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
3440 Fulton Ellipse Jig with Vacuum Base $79.99

Vacuum Switch

Vacuum Switch
Note: The Vacuum Switch can be used with Item #3440 Fulton Ellipse Jig for secureing the base with suction instead of screws.

This Vacuum Swtich turns any air compressor into a real suction machine. Just plug your compressor into one end, move the switch to the vacuum setting, and plug the other end into your vacuum device. The outward pressure exerted by your compressor is used to pull air out of the vacuuming end of the switch, allowing you to use vacuum bags to make laminate work, secure suction base products (like our Elipse Oval and Circle Cutting Jigs), and even power vacuum form systems for plastics and fiiberglass.

Features Include:

  • Vacuum Switch unit with on/off switch
  • Vacuum hose
    • 36" long x 8mm x 5mm diameter
  • Requires minimum 2.5 CFM @ 90 PSI

Uses in your shop

  • Convert your standard air compressor into a suction machine
  • Connect to your vacuum bag to make vacu-formed laminates
  • Secure products with a suction base securley to surfaces
California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
1472 Vacuum Switch $79.99

1.5" Vacuum Gauge with Brass Fitting

1.5" Vacuum Gaugewith Brass Fitting

To get accurate vacuum pressure readings on your Venturi Vacuum Switch (VEN-001) you'll want to use this high-quality gauge and brass t-fitting. The gauge features vacuum measurements in both Bars (blue) and Inches of Mercury (black).

Features Include:

  • High quality brass fitting sized for the Venturi Vacuum Switch (VEN-001)
  • Vacuum pressure measured in Bars (blue) and Inches of Mercury (black)

Uses in your shop

  • Attach to your Venturi Vacuum Switch to get an accurate measurement of how much air is being sucked out of your vacuum bags and fittings
California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
9145 1.5" Vacuum Gaugewith Brass Fitting $19.99

Trend
Mini Elipse and Circle Jig

Mini Elipse and Circle Jig
Mini Elipse and Circle Jig Mini Elipse and Circle Jig

Trend's Mini Ellipse Jig is ideal for routing elliptical or circular picture frames, mirrors, clocks and small tables. This jig cuts ellipses from 8-5/8-Inch by 6-1/4-Inch up to 22-1/2-Inch by 20-1/2-Inch and circles from 6-1/4-Inch up to 23-3/4-Inch. It is easily adapted to mark out the ellipse or circle prior to cutting.

Features:

  • Cuts small ellipses and circles
  • 8-5/8" by 6-1/4" up to 22-1/2" by 17"
  • Can be used for marking out before routing
  • Use with most small routers
  • Ideal for small table tops, picture frames, small mirror frames and clocks

Note: Router not included

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
10408 Trend® Mini Elipse and Circle Jig $149.99

Milescraft
Circle Guide Kit / 1219

CIRCLEGUIDEKIT
CIRCLEGUIDEKIT CIRCLEGUIDEKIT CIRCLEGUIDEKIT CIRCLEGUIDEKIT

PDF Manual

PDF BasePlate Mounting Key

Note
: Route Not included

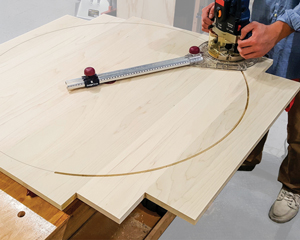

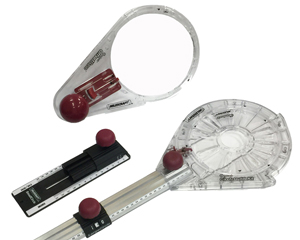

Cut small and large circles from 1.5” in diameter to 51” in diameter with the CircleGuideKit. With the included TurnLock™ base plate, this product is compatible with most routers. There is no longer a need for that homemade circle cutting jig, the CircleGuideKit does it all for you and includes everything you need to cut your desired circle. It also includes a BONUS Offset Base for finishing edges on your work piece.

Small Circle Jig

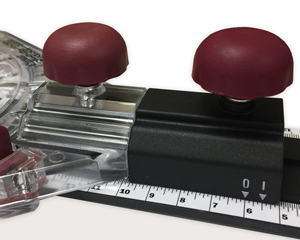

  • Built in imperial and metric scales, with an easy readout window for setting the diameter of both your inside and outside cuts
  • Quickly and easily attaches to the included TurnLock™ circle guide head
  • Cuts circles from 1.5" to 12"

Large Circle Jig

  • Built in imperial and metric scales, with an easy readout window for setting the diameter of both your inside and outside cuts
  • Quickly and easily attaches to the included TurnLock™ circle guide head
  • Cuts circles from 10" to 51"

BONUS Offset Base

  • 13" offset base provides added stability when finishing the edges on your work piece using your router
  • Oversized handle knob is easy to grip providing superior control of your router

Equipped with the patented TurnLock™ Technology

  • Allows for fast tool-free guide bushing and router attachment exchanges
  • Thumb-activated lock/release mechanism enhances speed and safety when changing tools
  • The TurnLock™ base plate accepts all Milescraft® bushings and others, with the included top-hat adaptor bushing



California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
10105 Milescraft® Circle Guide Kit / 1219 $39.99

MilesCraft
Rotary Tool Turnlock™ Plunger 1000

MilesCraft Rotary Tool Turnlock™ Plunger 1000 - large
MilesCraft Rotary Tool Turnlock™ Plunger 1000 - small MilesCraft Rotary Tool Turnlock™ Plunger 1000 with edge guide MilesCraft Rotary Tool Turnlock™ Plunger 1000 cutting circle MilesCraft Rotary Tool Turnlock™ Plunger 1000  used with Design Inlay Kit

Turn your dremel into a plunge router!

The Milescraft Rotary Tool Plunge Attachment converts your rotary tool into a mini plunge router. It features an integrated vacuum system, easy-grip handles for comfort while working, and a clear TurnLock base for optimal visibility. This attachment is made with sturdy construction, including steel posts, locking depth stop and a one-touch release. Ideal for use with Milescraft's Model 1204 Spirocrafter, this attachment fits most rotary tools including Dremel, Black and Decker and Craftsman. A circle and edge guide are included for miniature edging and dados.



Includes:

  • Milescraft Rotary Tool Plunge Attachment
  • Steel Edge and Circle Guide
  • Instruction manual
California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
10146 MilesCraft® Rotary Tool Turnlock™ Plunger 1000 $27.99

Router Compass

Router Compass

Our router compass will allow you to cut perfect circles, perfect arcs, and radius corners for large or small tabletops, lazy susan's and wheels with your router. The router compass will also cut circular grooves in your stock ranging from 8'' to 48'' in diameter. A steel point provides secure pivoting and adjusts quickly with a locking knob. The knob moves through out the center of the router compass to allow you to make virtually any size cut up to 48". The router compass is made from a clear acrylic plastic to see where you are routing and it also has clearly labeled measurements that are easy to read.



Note: Router not included

California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
1064 Router Compass $24.99

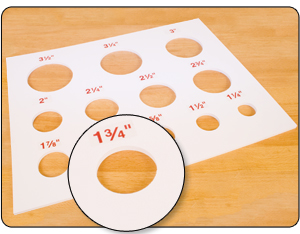

Router Circle Template

Router Circle Template

No more searching through stacks of templates to find just the right size circle for your project. This template has 12 of the most common size circles pre-milled into a durable 3/8" thick acrylic sheet. Each size circle is clearly labeled for quick and easy identification. This template is designed to be used with a 5/8" short shank template guide bushing (not included).

12 different diameters from
  • 1-1/4"   • 2-1/4"
  • 1-1/2"   • 2-1/2"
  • 1-5/8"   • 2-5/8"
  • 1-3/4"   • 2-3/4"
  • 1-7/8"   • 2-7/8"
  • 2"   • 3"





California Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item# Description Price Quantity
1057 Router Circle Template $24.99
