Router Accessories

1 HP Colt™ VS Palm Router Combo Kit PR20EVSPK

With its compact size and spirited performance, the 1.0 HP Colt Palm Router from Bosch is a very versatile tool. It's not just a laminate trimmer, but is ideal for trimming deck planks, hinge mortising, edge forming, slot cutting, dovetailing, window cutouts and decorative inlays. The PR20EVSK Variable-speed Colt Kit has a palm-grip design with Soft Grip to make it the most comfortable router in its class, yet it also has enough power to do the job and is more comfortable and easy to use than larger routers. The Soft start reduces start-up torque while the Bosch Constant Response Circuitry monitors and maintains speed under load for consistent performance and overload protection. Easily move the motor from base to base with the Quick-clamp System to work on other areas of your project. A convenient Front Spindle Lock on the motor was designed for easy, one-wrench bit changes and a shaft wrench is also included for those who prefer to use two wrenches to change bits. Bosch even covered the small details by angling the cord to help keep it out of the way. The contents of this kit make it ideal for all router users.

Features:

• 1.0 (Max) horsepower output for a wide array of routing applications
• Variable-speed dial — for matching speed to work piece and task
• Soft Start — reduces start-up torque Constant Response™ circuitry — monitors and maintains speed under load for consistent performance
• Angled cord exit — helps keep cord out of the way
• Rugged aluminum fixed base with micro and macro precise depth adjustment
• Rugged plunge base with smooth plunge action, plunge lock release lever, and depth rod with microfine adjustment
• Tool-free conversion — quick clamp system allows motor to be easily adjusted or moved from base to base
• Fast & precise depth adjustment systems
• Precision centering design — makes it easy to keep bit on intended cut line when using jigs, templet's, dovetail fixtures and similar guidance devices
• Straight edge guide — PR002 guides router - in fixed base - along edges of work piece or up to 3-5/8 In. from edge
• Comfortable contoured grip areas – the most comfortable router system in its class
• Versatile bit-changing system – fast, easy bit changes using two wrenches or spindle lock and one wrench

Includes:

• 1 ea. PR20EVS Motor
• 1 ea. Fixed Base
• 1 ea. Straight Edge Guide
• 1 ea. Plunge Base
• 1 ea. 1/4-inch self-releasing collet
• 1 ea. Bit-Changes Wrenches
• 1 ea. 1/4” Self-Releasing Collet
• 1 ea. Instruction manual.
• 1 ea. Carrying Case

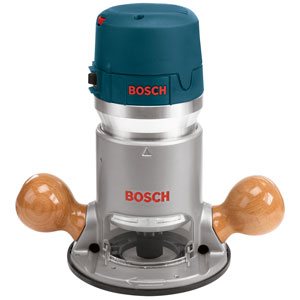

2.25 HP VS Router 1617EVS

Features:

• 2.25HP/ 12 Amp motor 8,000-25, 000 RPM
• Variable speed dial — for matching speed to work piece and task
• Macro and microfine bit depth adjustment system with resettable depth indicator — for fast, precise depth adjustment
• Large 3-3/4 In. base opening plus 2 In. sub woofer opening — accepts large bits
• Exclusive precision centering design centers bit precisely — makes it easy to keep bit on intended outline when using jigs, templet's, dovetail fixtures and similar guidance devices
• Right or left switch location — for user preference and consistency (motor does not rotate during depth adjustment)
• Classic hardwood handles — for comfort and beauty
• One-piece armature shaft — for accuracy and long bit shank capacity
• Soft Start — reduces start-up torque
• Constant Response™ circuitry — maintains constant speed under load, provides overload protection
• Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
• Double insulated
• Power switch - now includes dust-sealed power switch
• Now includes RA1161 fixed-base with system for adjusting bit height from above a router table

Includes:

• 1/4" S. R. Collet Chuck
• 1/2" S. R. Collet Chuck
• 16mm Shaft Wrench
• Collet Nut Wrench
• Chip Shield
• Fixed Base
• T-Handle Hex Height Adjustment Wrench
• Pack of 3 10-24 Screws for Table Mounting

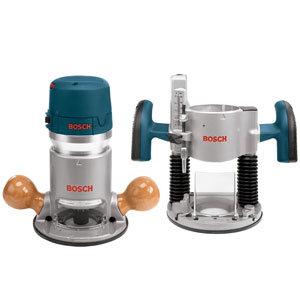

2.25 HP VS Router Combo Kit 1617EVSPK

Features:

• 2.25HP/ 12 Amp motor 8,000-25, 000 RPM
• Variable speed dial — for matching speed to work piece and task
• Soft-start — reduces start-up torque
• Constant Response™ circuitry — maintains constant speed under load
• Quick clamp system on both bases for fast tool-free conversion — move motor from base to base with ease
• Precision centering design — makes it easy to keep bit on intended outline when using jigs, templet's, dovetail fixtures and similar guidance devices
• microfine bit depth adjustment system on both bases — for fast, precise bit depth adjustment
• Wide base openings and 2 In. subbase openings — accepts larger bits & provides better visibility
• Right or left switch location — for user preference and consistency (motor does not rotate during depth adjustment)
• Contoured soft grip handles — for enhanced control and comfort
• Double insulated
• Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
• Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
• Rugged carrying case has compartments for all included items
• Power switch - now includes dust-sealed power switch

Includes:

• 1/4" Self-Releasing Collet Chuck
• Self-Releasing Collet Chuck
• 16mm Shaft Wrench
• 24mm Collet Nut Wrench
• Carrying Case
• Fixed Base
• Plunge Base
• Fixed Base Chip Shield
• Plunge Base Chip Shield
• Motor T-Handle Hex Height Adjustment Wrench
• Pack of 3 10-24 Screws for Table Mounting

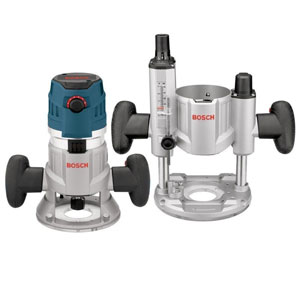

2.3 HP VS Router Combo Kit MRC23EVSK

Feature:

• 10,000-25, 000 RPM; 2.3 HP (Max tool)
• Trigger control system - trigger power switch located in handle for enhanced control
• Smooth plunge action, spring-lock plunge lever, and depth rod for easy and precise plunge routing
• Afterlock microfine depth adjustment - easy & precise adjustments at any plunge setting
• Versatile fixed-base depth adjustment - features continuous microfine adjustment range & wrench for adjustments through top of optional router table
• Always-on LED lighting - for enhanced visibility in bit area
• Precision centering design – makes it easy to keep bit on cut line when using jigs, templet's, dovetail fixtures and similar guidance devices
• Two-stage quick clamp system - for fast tool-free conversion
• Soft Start Technology — reduces start-up torque
• Variable speed dial — for matching speed to work piece and task
• Constant Response™ circuitry — maintains constant speed under load
• Contoured soft grip handles — for enhanced control and comfort
• Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
• Cord swivel - for added mobility
• Rugged carrying case has compartments for all included items

Includes:

• Fixed Base
• Plunge bas
• 1/4" Self-Releasing Collet Chuck
• 1/2" Self-Releasing Collet Chuck
• 16mm Shaft Wrench
• 24mm Collet Nut Wrench
• T-Handle Hex Height Adjustment Wrench
• Carrying Case
• Pack of 3 M4 Screws for table mounting

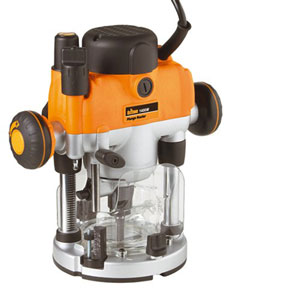

2-1/4 HP Dual Mode Precision Plunge Router MOF001

Award-winning router with compact and powerful 1400W (2 1/4hp) motor and 8000-20000rpm electronic speed maintenance under load. Quick-fit pins located in base for rapid fitment to mounting plate. Easy-set, direct reading 3-stage turret for precise pre-set cut depths. Single dial switch from plunge to fixed-base router with rack and pinion height adjustment.

Features:

• Provides the perfect speed for all cutter types
• 1⁄2" & 1⁄4" (EU: 1⁄4" & 8mm) Collet
• Through-base, single spanner action bit change
• Variable speed, soft start & safety switch
• Free plunge, handle winder plunge & micro adjuster
• Dust extraction port
• Quick Fit Pins
• Fast fitment and removal from the fence RTA300 router table
• Fully enclosed guarding
• 8000-20000 RPM electronic speed
• 1400-Watts: 2-1/4 HP

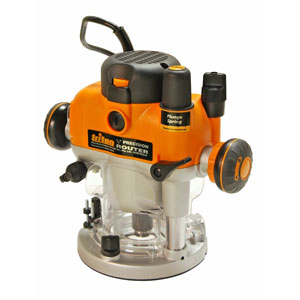

3-1/4 HP Dual Mode Precision Plunge Router TRA001

Powerful 2400W electronically controlled motor. Single spanner ‘above table’ cutter changing. Automatic shaft lock and power lock-off during cutter change mode. Fast plunge depth adjustment with winder handle and fine depth adjustment with micro winder. Quick switching to conventional plunge mode. Removable plunge spring for easy lifting and adjustment. Effective dust port.

Features:

• Single button switches from conventional plunge to fixed-base router with rack and pinion mode
• Through base, single wrench bit change is achieved with automatic spindle lock
• Micro winder enables continuous fine depth adjustment through the full plunge mode
• Soft start and variable speed provides the perfect speed for all cutter types
• Side air vents reduces intake of dust into the motor casings
