Shop Safety Accessories

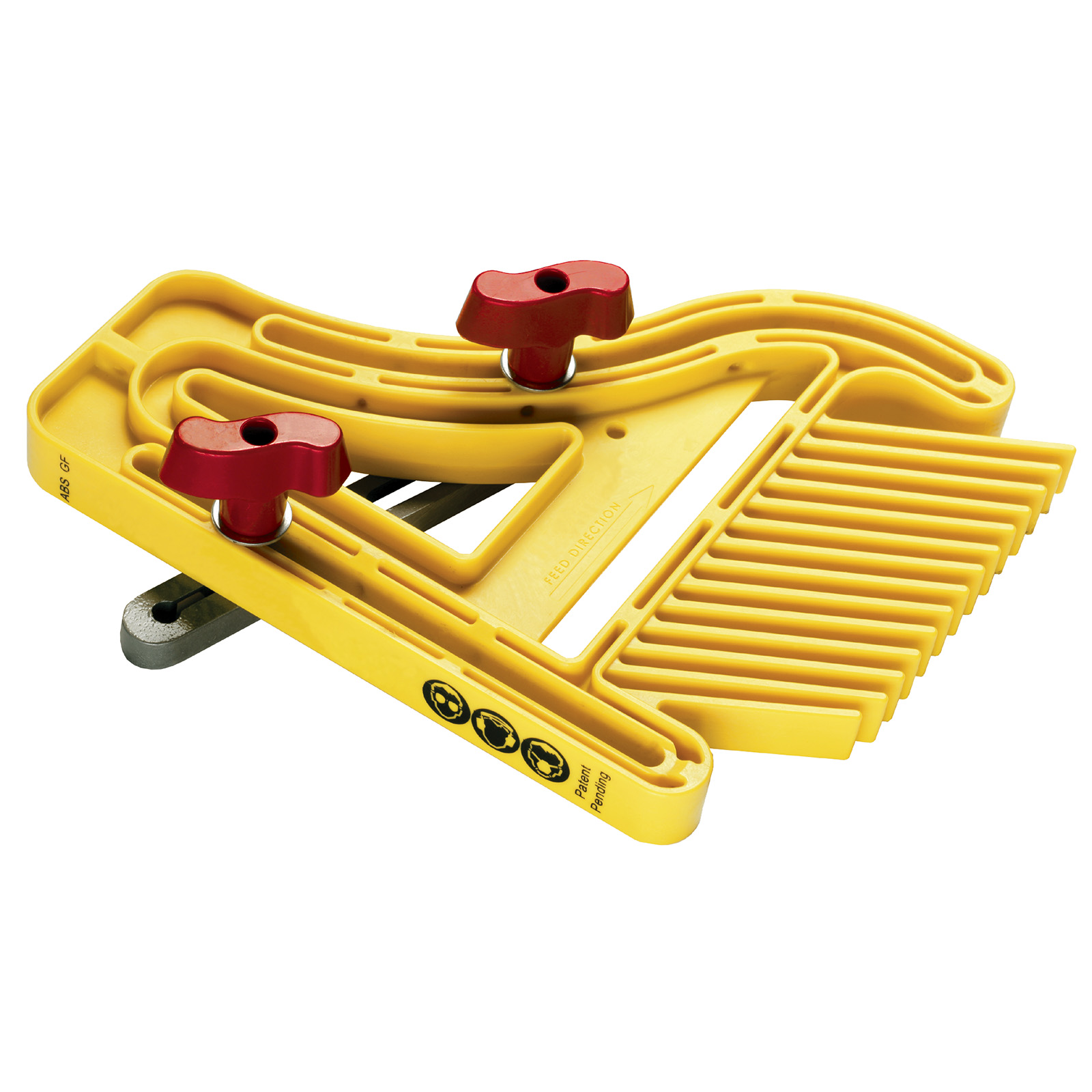

Featherboard - 1406

Innovative Featherboard Design Provides Consistent Tension And Maximum Hold FeatherBoard for Routers and Table Saws features a unique pre-load design that allows you to set the appropriate tension between the work-piece and the fence of the power tool.

The Milescraft FeatherBoard has maximum holding pressure created by unique split rail construction. Pre-load tension design maintains consistent pressure across the face of the FeatherBoard. 5/8" and 3/4" metal miter bars fit all standard miter slots. Dual slide motion and S-style knobs provide quick, easy and proper installation and prevent overtightening damage to components. High visibility yellow makes units easy to find in busy shops.

Features & Benefits

• Designed to hold work pieces securely against the power tool’s fence when cutting or mitering
• Unique pre-load tension design for consistent cuts with reduced chance of kick-back
• Split-rail miter bar construction provides maximum hold
• Slides side-to-side and forward for quick and easy setup
• Ergonomic knobs help prevent over-tightening and are easy to loosen
• 3/4" and 5/8" wide miter bars and T-slot bolts
• Mounting hardware included

True-Flex™ Featherboard

The True-FLEX™ Featherboard gets its name from the careful engineering that went into its design. Many featherboard's on the market today apply too much pressure or not enough pressure to the work piece, resulting in imperfect cuts and less than safe operation. We’ve designed each finger of the True- FLEX™ featherboard to provide a consistent and optimum pressure, and to stand up to years of use in your wood shop. The featherboard is made from an extremely durable plastic composite body and even includes an exclusive wedge-lock system which allows the featherboard to be secured to a variety of shop tools without the need for additional hardware. Whether you’re using a miter-slot or a t-slot, working on a table saw or a router table, the wedge-lock system adjusts accordingly and lets you work with confidence.

Features:

• Carefully designed fingers apply optimum pressure
• Wedge-Lock™ hardware for miter slot and T-slot compatibility
• Durable plastic composite body

Small Fence Featherboard

#1136 This Small Featherboard is a great hold down for, router table fences , drill press fences and much more, plus anti kickback. Best used with a 7/16" T-Slot for use with 1/4" hex head bolts.

#3302 Small Featherboard with hardware kit allows you to use the featherboard in T-Slot & standard table top miter slot (3/8" x 3/4")

Featherboard Size: 3/8" x 3-1/4" x 7-1/2"

Adjustment: aprox. 2" up and down

Dual Pressure Featherboard

Most featherboards apply too much pressure or not enough pressure to the workpiece, resulting in imperfect cuts and less than safe operation. This double-ended featherboard is designed to provide a consistent and optimum pressure, one end has lighter pressure, while the other end is heavier pressure. Chose the end that is best for the job at hand. This heavy duty featherboard will stand up to years of use in your woodshop. The featherboard includes the hardware to allow the featherboard to be secured to a variety of shop tools. Whether you are using a miter-slot or a t-slot, working on a table saw or a router table, the hardware system adjusts accordingly and lets you work with confidence.

• Dual Pressure for Various Purposes
• Slotted for 5-1/2" Travel
• Durable ABS for Long Life
• Contains: One (1) Featherboard, Mounting
• Hardware

Large Fence Featherboard

#1137 This Large Featherboard is a great hold down for, router table fences , drill press fences and much more, plus anti kickback. Best used with a 7/16" T-Slot for use with 1/4" hex head bolts.

#3303 Large Featherboard with hardware kit allows you to use the featherboard in T-Slot & standard table top miter slot (3/8" x 3/4")

Featherboard Size: 3/8" x 7-1/4" x 8"

Adjustment: aprox. 5" up and down

Get two, you will love them.

X- Large Fence Featherboard

#1138 This X-Large Featherboard is a great hold down for, router table fences , drill press fences and much more, plus anti kickback. Best used with a 7/16" T-Slot for use with 1/4" hex head bolts.

#3304 X-Large Featherboard with hardware kit allows you to use the featherboard in standard table top miter slot (3/8" x 3/4")

Size: 3/8" x 8-1/2" x 8-1/2"
Adjustment: aprox. 8-1/2" up and down

Get two, you will love them.

Deluxe Wooden Featherboard

Deluxe Wooden Feather board Quick positioning feather board keeps stock tight against the fence and flat to the saw table while cutting. Prevents chatter and dangerous kick-back. Locks into standard miter slots with a quick twist of the knob. 4-1/2" adjustment slot, 9/16" thick x 1-3/4" wide x 10" long.

Safety Guard Featherboard

This featherboard is the perfect solution for router table fences limited in space. It not only keeps your stock firmly against your table top, it acts as a router bit safety guard as well. The unique outward curve design keeps your fingers away from the cutters while feeding your stock through the cut and will not interfere with the router bit while cutting. The featherboard measures a full 101/4" long x 3" high.

Miter T-Track Locking Kit

Use this miter slot locking kit to lock custom jigs and fixtures in any t-slot groove. We found it quite handy to lock all types of featherboards onto table saws, router tables and band saws. The t-bar will fit any 3/4" x 3/8" miter t-slot groove or our Standard MITER-T-TRACK.

The Fixture Kit includes:

• 2 ea. T-Slot Pieces
• 2 ea. 1/4"-20 Bolts
• 2 ea. Round Knobs
• 1 ea. Nylon Locking Knob

Note: Featherboard not included.

Miter-Slot Jig & Fixture Hardware Kit

Make your own jigs & hold-downs. Excellent for attaching feather boards, hold-downs, and special jigs to your table saw, router table, disc sander, or any other tool with a standard 3/4" wide x 3/8" deep miter gauge slot. The bars pull up tight in the slot as you tighten the knobs. These square-slot Bars fit both square and t-shaped miter gauge slots. Square-Slot Bars are 2-1/2" long and expand in the slot as you tighten the knobs. Each kit includes 2 each: jig bars, knobs with screws, and washers.

Fixture Locking Kit

The perfect accessory kit for attaching featherboard, hold-downs or virtually any type of jig you can think of to your table saw, router table, or any tool with a standard 3/4" x 3/8" miter gauge slot. The fixture kit works by applying outward pressure to the "walls" of the miter gauge slot. The "wedge" bolts push up into center counter sunk holes in the miter bar as they tighten with the star knobs, which pushes the center of the miter bar outward producing a nice tight fit.

The Fixture Kit includes:

• 2 ea. expandable 4 3/4" long miter bars
• 2 ea. star knobs
• 2 ea. wedge bolts
• 2 ea. washers
• can be used with stock up to 1-1/4" thick
